Two Stage Plastic Recycling Machine

YDN-W SERIES (with 2 EXTRUDERS**)
TWO STAGE PLASTIC RECYCLING MACHINE
Cooling Type : Water Cooled
Material : Heavy Printed Film, Washed Film, Contaminated Materials
Screw Dia.: 65MM / 85MM / 100MM / 105MM / 120MM / 160MM
Output : 100 ~ 1,100 kg/hr

Play Video

Application

Applicable material / Final product

PE

POLYETHYLENE
HDPE / LDPE / LLDPE
PP

POLYPROPYLENE
EPE/EPS

EXPAND APLE POLY EPHYLENE
EXPANDED POLYSTYRENE
OTHERS

PS / EVA / PLA / ABS

Model

A quick check to help you finding the suitable machine

No

Product

SPEC.


YDN-2V-65-T-1

OUTPUT : 100-150 KG/HR
SCREW DIA. : 65MM

–

YDN-2V-85-T-1

OUTPUT : 200-250 KG/HR
SCREW DIA. : 85MM

–

YDN-2V-100-T-1

OUTPUT : 380-450 KG/HR
SCREW DIA. : 100MM

–

YDN-2V-120-T-1

OUTPUT : 550-700 KG/HR
SCREW DIA. : 120MM

–

YDN-2V-160-T-1

OUTPUT : 900-1100 KG/HR
SCREW DIA. : 160MM

–

Format

MODEL

YDN-W SERIES

APPLICABLE MATERIAL

HDPE/LDPE/LLDPE/PP/EVA/ABS/PS/PLA/EPS/EPP
Heavy Printed Film, Washed Film, Contaminated Materials

OUTPUT RANGE (KG / HR)

100~1100 kg/hr

( Depending on moisture content and percentage of contamination. )

COMPOSITION (STANDARD)

FEEDING CONVEYOR, CUTTER COMPACTOR (SHREDDER),1st EXTRUDER, 2nd EXTRUDER, 1st SCREEN CHANGER, 2nd SCREEN CHANGER, PELLETIZER, VIBRATING DRYER, PELLETS COLLECTION SILO, CONTROL PANEL

SCREW DIA.

Ø 65MM / Ø 85MM / Ø100MM / Ø105MM / Ø120MM /Ø130MM /Ø160MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

1st Extruder: 32/1
2nd Extruder: 12/1, 15/1

( Customized )

OPTIONS

NIP-ROLLER ( FOR FEEDING ) ,METAL DETECTOR, VACUUM PUMP,CENTRIFUGE,CHILLER, MASTERBATCH FEEDER

Introduction

Product Features of YDN-W Series

【APPLICABLE MATERIALS】:
HDPE, LDPE, LLDPE, PP, EVA, ABS, PS, PLA, EPS, EPP and son on.

【SUITABLE TYPES】:
Heavy Printed Film, Washed Film, Contaminated Materials, etc.

• Direct combination of shredder, extruder and pelletizer.
• Two sets of extruders.
• With venting hole. A vacuum pump is available as option.
• Two sets of Twin hydraulic cylinder type screen changer - allows changing screen without machine shut-down.
• Die-face pelletizer.
• Control panel with PLC touch screen is available as option.
• Compact design, space-saving.
• High quality, moisture-free final products.

How the YE I’s plastic waste recycling machine works, the process contains as below

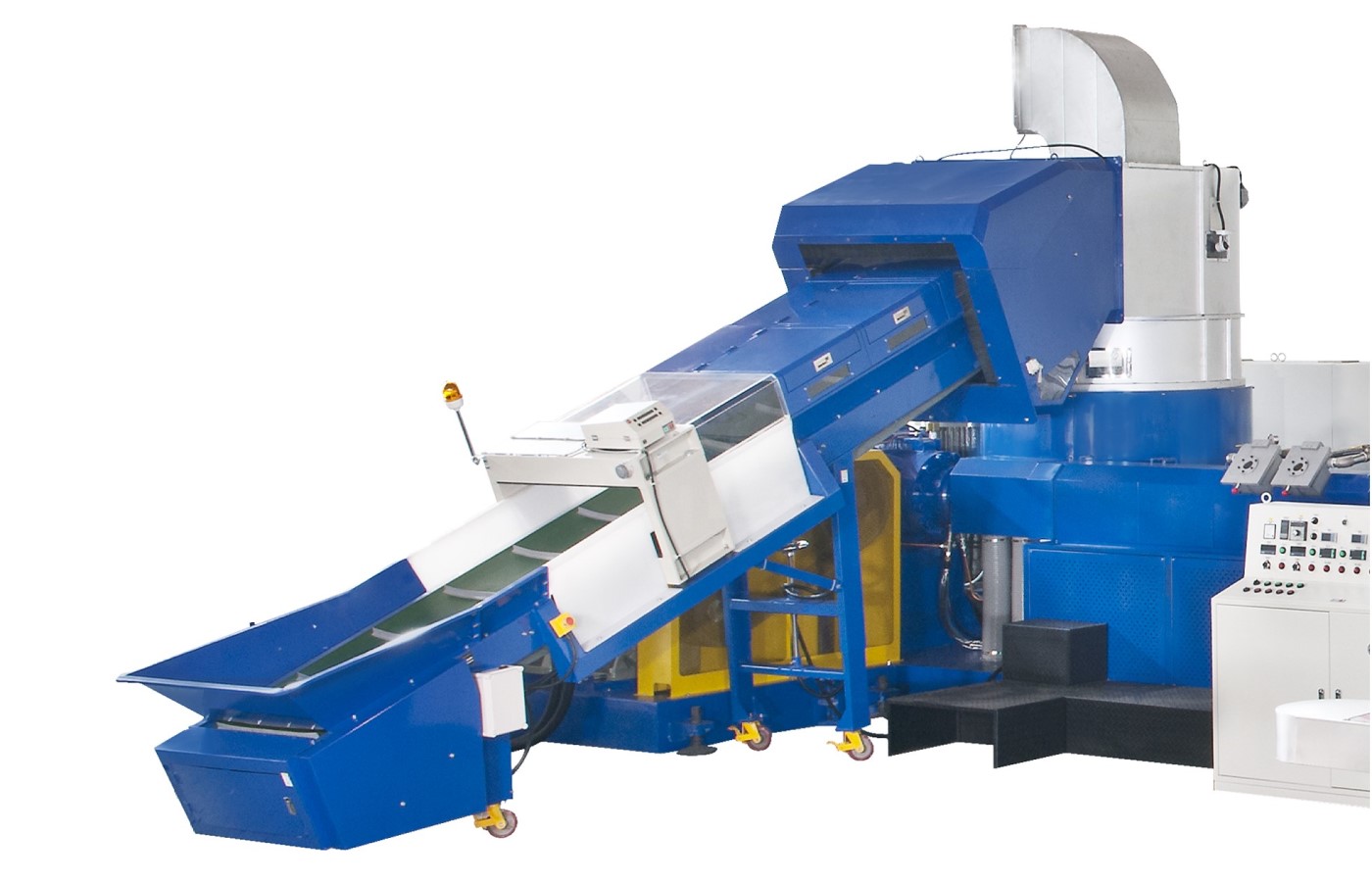

1. CONVEYOR (belt type): Feed the material into the entrance of shredding drum. (It can be switched to manual or automatic mode according to actual needs.)
2. METAL DETECTOR (Optional):
If metal is detected during the feeding process, the safety mechanism will be activated, a warning sound will be issued and the conveyor will automatically stop.
3. SHREDDING DRUM:
Material will be fed into the shredder by the conveyor or nip-roller and be shredded by high-speed rotating blades.
4. NIP ROLLER:
Used to feed roll material.
5. 1ST EXTRUDER AND 2ND EXTRUDER ** :
During this process, the material gradually melts and is thoroughly mixed and compacted.
6. CONTROL PANEL
7. VENT PORT (single vented type):
Remove water and ink generated during melting. Extra vent port is available as an option.

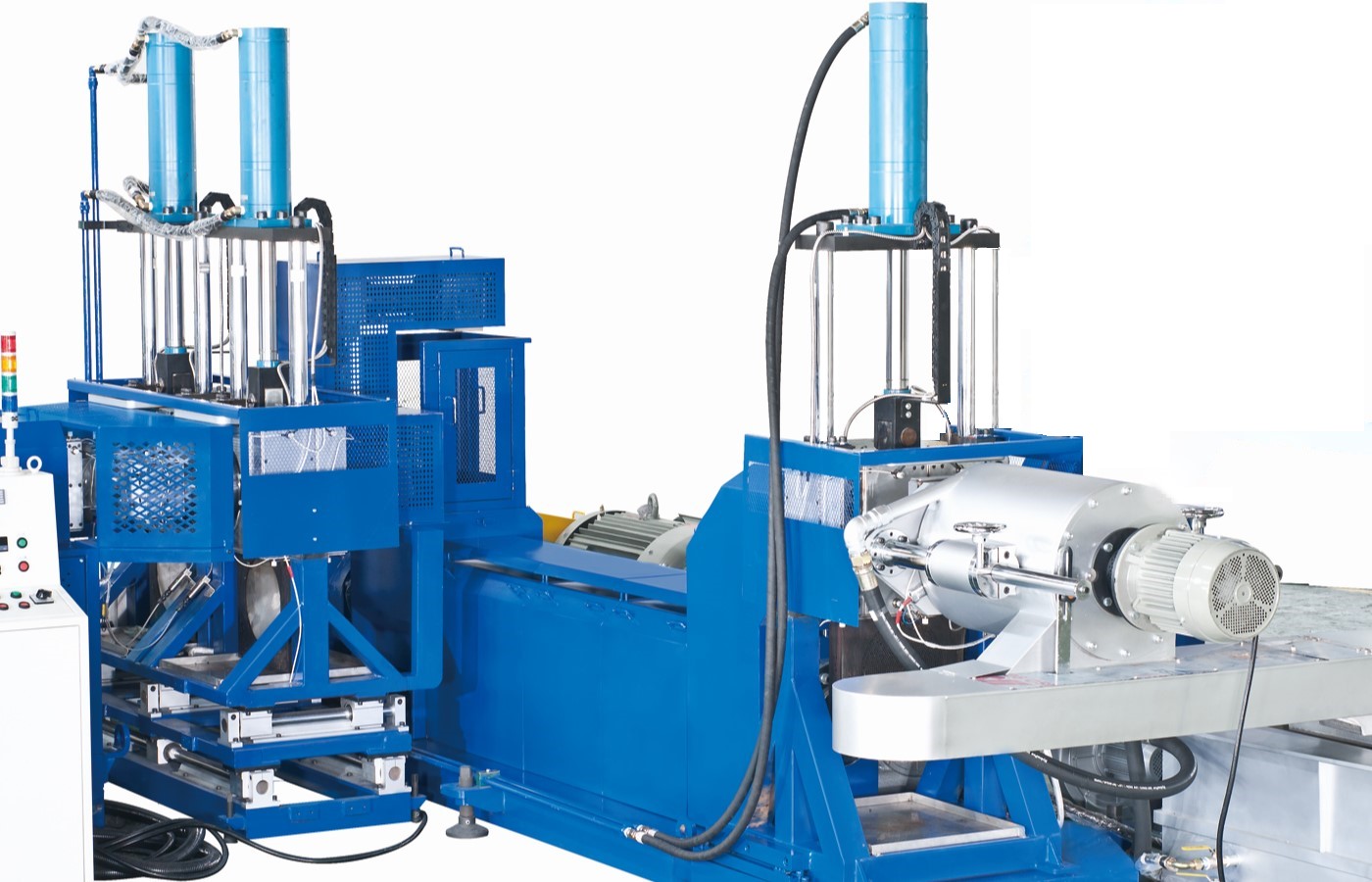

8. 1ST HYDRAULIC SCREEN CHANGER AND 2ND HYDRAULIC SCREEN CHANGER ** :
Filter excess impurities and support the function of changing meshes without stopping the machine.
9. DIE-FACE PELLETIZER:
Granulation, the size of plastic particles can be adjusted during this process.

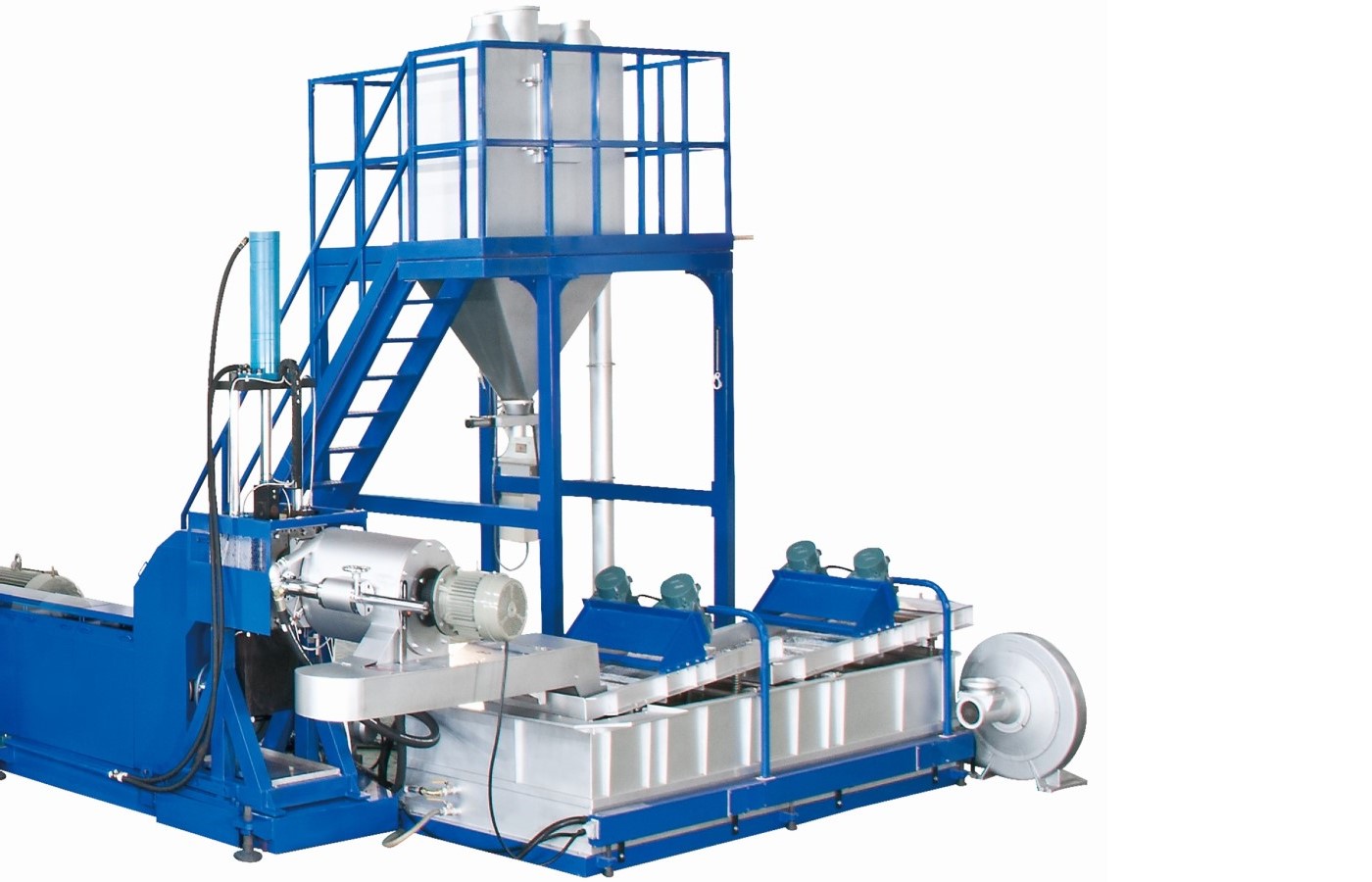

10. VIBRATING DRYER:
With the vibration mode to remove water/liquid, and at the same time it can help the particles to be guided to the particle size screening area.
11. CENTRIFUGE (optional):
Remove excess water on the surface of pellets.
12. PELLETS COLLECTION SILO:
Collect the pellets for subsequent bagging.

1) Assembly and inspection-Gear box

2) Assembly and inspection-Barrel with heaters

3) Raw material for screw and barrel

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house, such as screw, barrel, die head, filter, etc., to ensure the overall quality and stable operation of the company's machines.

About 200 sets of extrusion equipment are sold every year. YE I's professional high-quality recycling machines have been installed in 120 countries worldwide.

Advantage

Styrofoam box is recyclable
Plastic tableware is recyclable
Nets and fibers are recyclable
Films are recyclable
Plastic Waste Recycling
High quality
Easy operation
Low power consumption
Low CO2 emissions

Sold To

Installation and running test at customer's plant

MODEL : YDN-V65

SOLD TO : IRAN
MATERIAL : PE FILM
MODEL : YDN-V85

SOLD TO : SAUDI ARABIA (RIYADH)
MATERIAL : LDPE Bag, PP Pipe (Crushed), HDPE Pipe (Crushed), PP Non-Woven Fabric
MODEL : YDN-V100

SOLD TO : SAUDI ARABIA (JEDDAH)
MATERIAL : LDPE Bag, PP Jumbo Bag, HDPE ROPE, PP Non-Woven Fabric
MODEL : YDN-2V-105 (Double vented)

SOLD TO : NORTHEAST ASIA
MATERIAL : LDPE Woven Bag
Output : 450 KG/HR
MODEL : YDN-2V-120 (Double vented)

SOLD TO : JAPAN
MATERIAL : HIGH POLYMER PE
MODEL : YDN-2V-160 (TWO STAGE, Double vented)

SOLD TO : MALAYSIA
MATERIAL : PE Washed Film

Sales success - Recycle

Our international sales success of plastic recycling lines

YE I's recycling machines have been installed to 120 countries worldwide

Engaged in the plastic extrusion industry since 1960, with annual sales of 200 units extrusion equipment. YE I's best-selling high-quality plastic waste recycling line has been installed in 120 countries around the world to do the recycle and also dispose of leftover bags from blown film manufacturers. If you are looking for a reliable and innovative supplier of plastic recycling lines, YE I MACHINERY is undoubtedly your best choice!
