PET Plastic Recycling Machine

YDN-HPELB SERIES
Strand Type or Flow Channel type
Material : PET, PA (NYLON)
Screw Dia.: 65MM / 85MM / 100MM / 120MM
Output : 100 ~ 1,000 kg/hr

Application

Applicable material / Final product

  • list_16_435x260

    PA

    NYLON

  • list_15_435x260

    PET

    POLYETHYLENE TEREPHTHALATE

Model

A quick check to help you finding the suitable machine

No

Product

SPEC.


YDN-HPELB-65

OUTPUT : 100 KG/HR
SCREW DIA. : 65 MM

YDN-HPELB-85

OUTPUT : 200 KG/HR
SCREW DIA. : 85 MM

YDN-HPELB-100

OUTPUT : 380 KG/HR
SCREW DIA. : 100 MM

YDN-HPELB-120

OUTPUT : 500 KG/HR
SCREW DIA. : 120 MM

Format

MODEL

YDN-HPELB SERIES

APPLICABLE MATERIAL

PET / PA (NYLON)

OUTPUT RANGE (KG / HR)

100~1,000 kg/hr

( Depending on moisture content and percentage of contamination. )

COMPOSITION (STANDARD)

FEEDING CONVEYOR, CUTTER COMPACTOR (SHREDDER),EXTRUDER, SCREEN CHANGER, PELLETIZER, WATER COOLING TROUGH, VIBRATING SIEVING DEVICE, PELLETS COLLECTION SILO, CONTROL PANEL

SCREW DIA.

Ø 65MM / Ø 85MM / Ø 100MM / Ø 120MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

36/1

OPTIONS

NIP-ROLLER ( FOR FEEDING ), METAL DETECTOR, VACUUM PUMP, MECHANICAL VACUUM PUMP, CHILLER, MASTERBATCH FEEDER

Introduction

HPELB-cut3_435x260
HPELB-cut2_435x260
HPELB-cut1_435x260

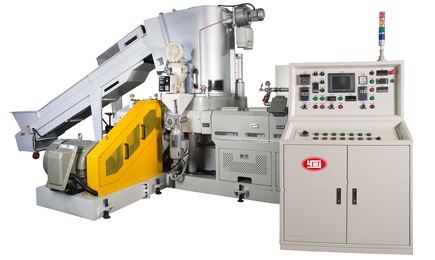

Product Features of YDN-HPELB Series

【APPLICABLE MATERIALS】:
PET, PA (NYLON)

【SUITABLE TYPES】:
Films, Film Rolls, Bags, Fiber, Raffia, Silk, Yarn, etc.

• Type of machine: Strand Type or Flow Channel type
• Direct combination of shredder, extruder and pelletizer.
• Strand type pelletizer with water cool trough
• With venting hole. A vacuum pump or mechanical vacuum pump is available as option.
• Twin hydraulic cylinder type screen changer - allows changing screen without machine shut-down.
• Compact design, space-saving.
• High quality, moisture-free final products.

How the YE I’s plastic waste recycling machine works, the process contains as below

1. FEED THE MATERIAL:
- CONVEYOR (belt type): Feed the material into the entrance of shredding drum. (It can be switched to manual or automatic mode according to actual needs.)
- NIP ROLLER (Optional): Used to feed roll material.
2. METAL DETECTOR (Optional):
If metal is detected during the feeding process, the safety mechanism will be activated, a warning sound will be issued and the conveyor will automatically stop.
3. SHREDDING DRUM:
Material will be fed into the shredder by the conveyor or nip-roller and be shredded by high-speed rotating blades.
4. EXTRUDER:
During this process, the material gradually melts and is thoroughly mixed and compacted.
5. CONTROL PANEL
6. VENT PORT (single vented type):
Remove water and ink generated during melting. Extra vent port is available as an option.
7. HYDRAULIC SCREEN CHANGER:
Filter excess impurities and support the function of changing meshes without stopping the machine.

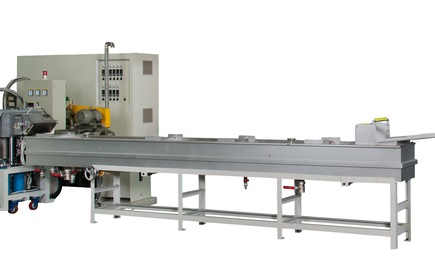

8. WATER COOLING TROUGH:
Cool the long plastic strips with water.

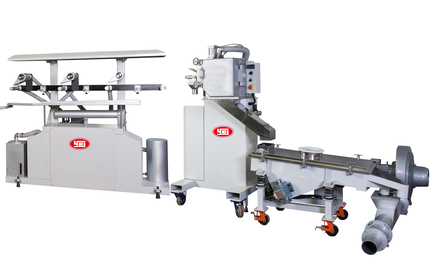

9. STRAND TYPE PELLETIZER:
Granulation, the size of plastic particles can be adjusted during this process.
10. VIBRATING SIEVING DEVICE:
With the vibration mode to help the particles to be guided to the particle size screening area.
11. PELLETS COLLECTION SILO:
Collect the pellets for subsequent bagging.

1) Assembly and inspection-Gear box
1) Assembly and inspection-Gear box
2) Assembly and inspection-Barrel with heaters
2) Assembly and inspection-Barrel with heaters
3) Raw material for screw and barrel
3) Raw material for screw and barrel

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house, such as screw, barrel, die head, filter, etc., to ensure the overall quality and stable operation of the company's machines.

About 200 sets of extrusion equipment are sold every year. YE I's professional high-quality recycling machines have been installed in 120 countries worldwide.

Advantage
  • PET bottles are recyclable

  • Plastic Waste Recycling

  • High quality

  • Easy operation

  • Low power consumption

  • Low CO2 emissions

Sales success - Recycle

Our international sales success of plastic recycling lines

list_15_435x260
list_03_435x260
YDN-W-net-pellets-blue

YE I's recycling machines have been installed to 120 countries worldwide

Engaged in the plastic extrusion industry since 1960, with annual sales of 200 units extrusion equipment. YE I's best-selling high-quality plastic waste recycling line has been installed in 120 countries around the world to do the recycle and also dispose of leftover bags from blown film manufacturers. If you are looking for a reliable and innovative supplier of plastic recycling lines, YE I MACHINERY is undoubtedly your best choice!
