AB/ABA - PE Blown Film Machine

YEI-DL SERIES ( AB / ABA )
Two Layer or Three Layer - High Speed Blown Film Machine

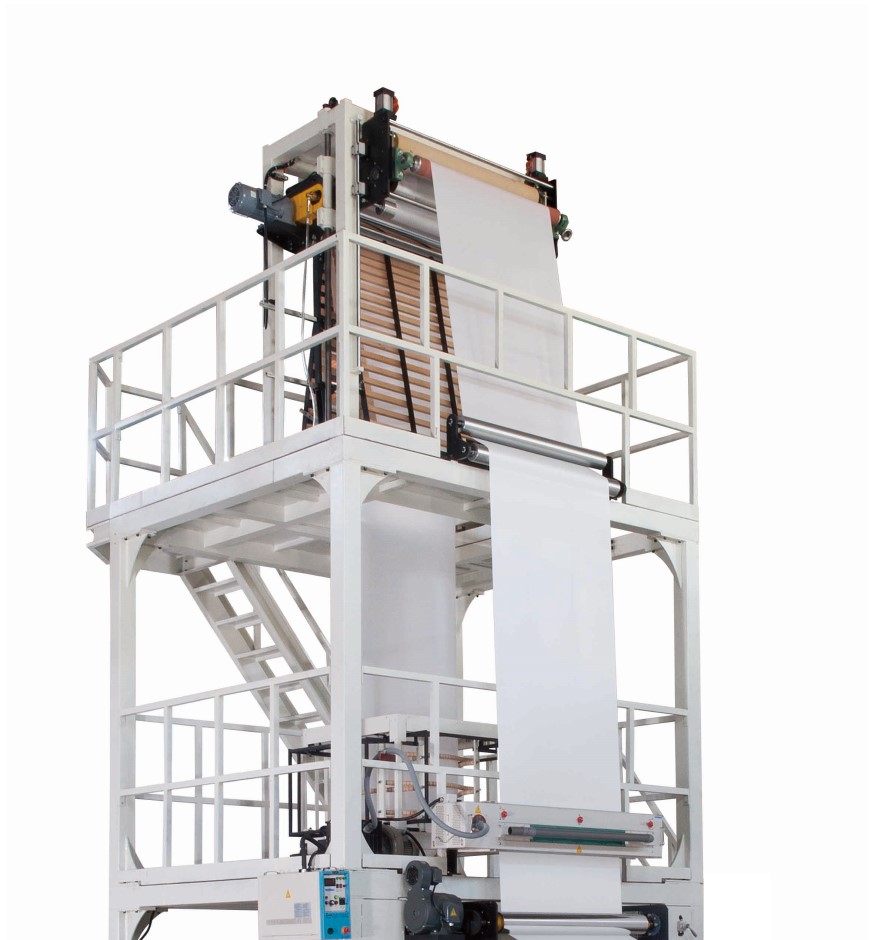

ABA Co-extrusion Blown film line
Material : HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL
Screw Dia.: 45MM / 55MM / 65MM / 80MM
Thickness: 0.01~0.02MM
Extrusion Output : 100 ~ 300 kg/hr

Play Video

Application

Applicable material / Final product

Plastic Bags and Films

HDPE / LDPE / LLDPE

Model

A quick check to help you finding the suitable machine

Product

SPEC.


YEI-DL45

SCREW DIA. : 45 MM
EXTRUSION OUTPUT : 60~80 KG/HR

–

YEI-DL55

SCREW DIA. : 55 MM
EXTRUSION OUTPUT : 100~120 KG/HR

–

YEI-DL65

SCREW DIA. : 65 MM
EXTRUSION OUTPUT : 160~200 KG/HR

–

YEI-DL80

SCREW DIA. : 80 MM
EXTRUSION OUTPUT : 200~250 KG/HR

–

YEI-45/55

SCREW DIA. : 45MM X1 + 55 MM X1
EXTRUSION OUTPUT : 100~120 KG/HR

–

YEI-55/65

SCREW DIA. : 55MM X1 + 65 MM X1
EXTRUSION OUTPUT : 160~180 KG/HR

–

Format

MODEL

YEI-DL SERIES

APPLICABLE MATERIAL

HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL

FINAL PRODUCT

TWO LAYER or THREE LAYER FILM / FILM ROLLS

LAYFLAT WIDTH

500~3,000 M/M

THICKNESS RANGE

0.01~0.2MM

( Depending on material properties )

OUTPUT RANGE (KG / HR)

50 ~300 kg/hr

( Depending on size of die, film width, film thickness, working condition and material properties.)

COMPOSITION (STANDARD)

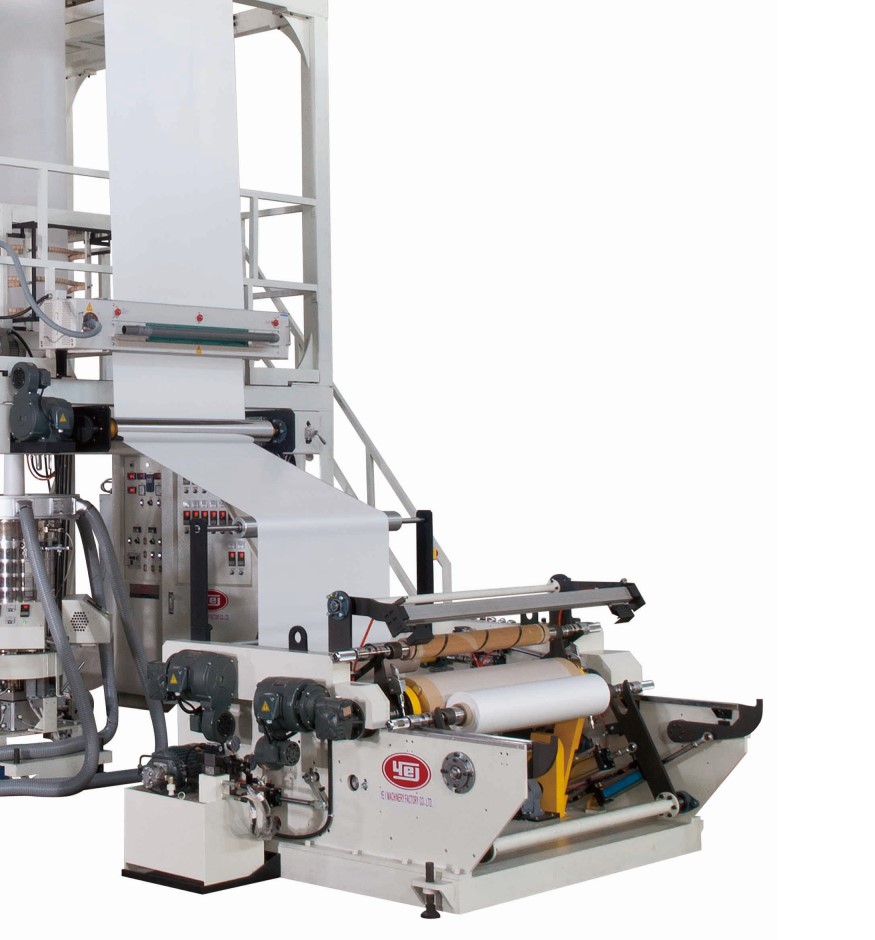

EXTRUDER, DRIVING MOTOR, CO-EXTRUSION DIE-HEAD, AIR-RING, FILTER, TAKE-UP UNIT, CONTROL PANEL, WINDER

SCREW DIA.

Ø 45MM / Ø 55MM / Ø 65MM / Ø 80MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

26/1 , 28/1 , 30/1 , 32/1

( Customized )

OPTIONS

AUTO LOADER, CORONA TREATOR, ROTARY DIE DEVICE OR OSCILLATING TAKE-UP UNIT, EMBOSSING ROLLER, TENSION CONTROL FOR WINDER, PRESSURE GAUGE, GRAVIMETRIC BLENDER, INTERNAL BUBBLE COOLING DEVICE, AUTO GAUGING CONTROL SYSTEM, BACK TO BACK WINDER, HOPPER DRYER, ETC.

Introduction

Product Features of YEI-DL Series

【APPLICABLE MATERIALS】:
HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL

【APPLICATION of mono layer films】:
Shopping bag, garbage bag, heavy-duty bag, shrink film, stretch wrap and so on.

• Production line with two extruders and two sets of filter.
• Compact design, space-saving.
• Due to the different properties, we offer specific sets of die and air-ring. The blown film line is capable of running HDPE and LDPE by changing the insert.

Main components of YE I's AB and ABA co-extrusion blown film line

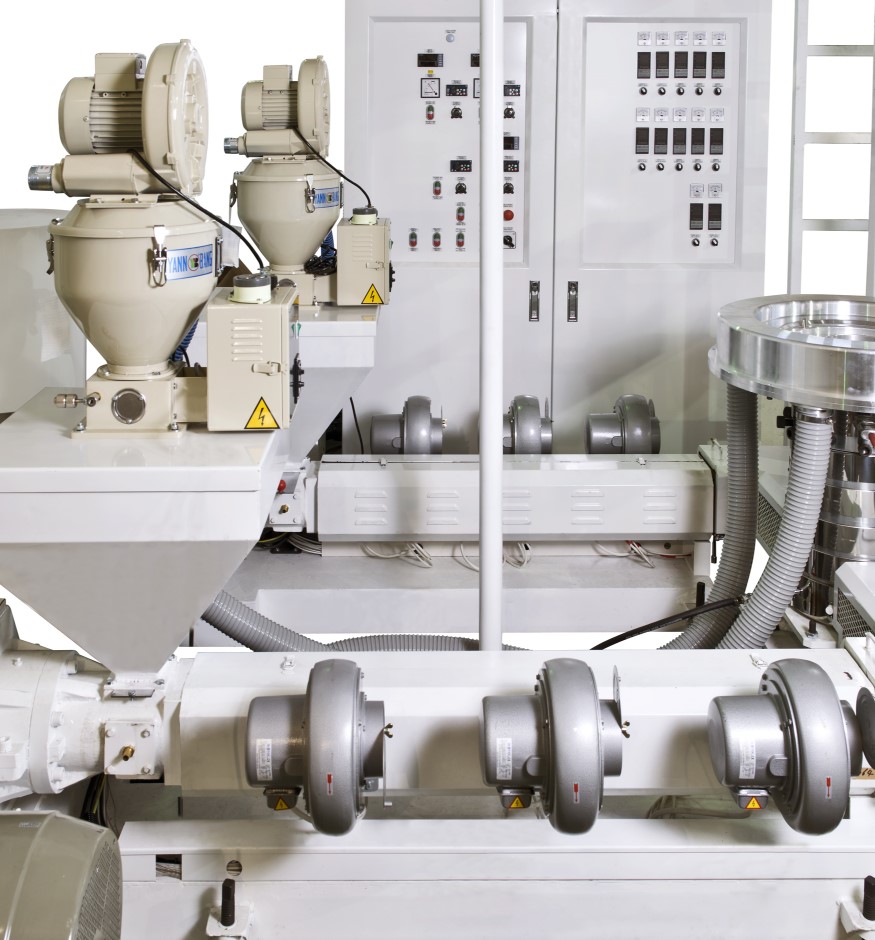

• Extruder (two units) :
With iron casting gear box (Three axles transmission type with SKF bearings), made of alloy steel with heat treatment and precise grinding. Solid, flexible, energy-saving, special spiral design to improve production capacity.

• Co-Extrusion Die-head:
The specifications of the die-head are adjustable according to the difference in material properties and the thickness of final product.
Due to the different design of flow channels, AB and ABA each has its own specific die-head.

• Melt Filter (two sets):
Filter impurities without leakage. We offer two(2) kinds of manual filters for selection. Hydraulic screen changer is available.

1) Raw material for screw and barrel

2) Assembly and inspection-Barrel with heaters

3) Assembly and inspection-Gear box

1) Assembly and inspection-Gear box

5) Running test and measure the thickness of films

6) Other related checks, if necessary

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.

Air ring, die head, cylinder and extruder are the key components of blown film extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error.

About 200 sets of extrusion equipment are sold every year. YE I has already sold over ten thousand of blown film machines and other related equipment in 90 countries worldwide.

Advantage

High quality
Easy operation
Low power consumption
Low CO2 emissions

Sales success

Our international sales success of plastic blown film lines

YE I's extrusion line has been sold more than 10,000 units worldwide

Engaged in the plastic extrusion industry since 1960, over 10,000 units of YE I's blown film machines and recycling equipment have been sold to 120 countries, mostly in Europe, Asia and North America. Along with blown film extruders, plastic waste recycling equipment also been purchased to handle leftover bags. Thousands of best-selling ABA blown film extrusion lines have been installed for production. If you are looking for a trustworthy and innovative blown film line supplier, look no further than YE I MACHINERY!
