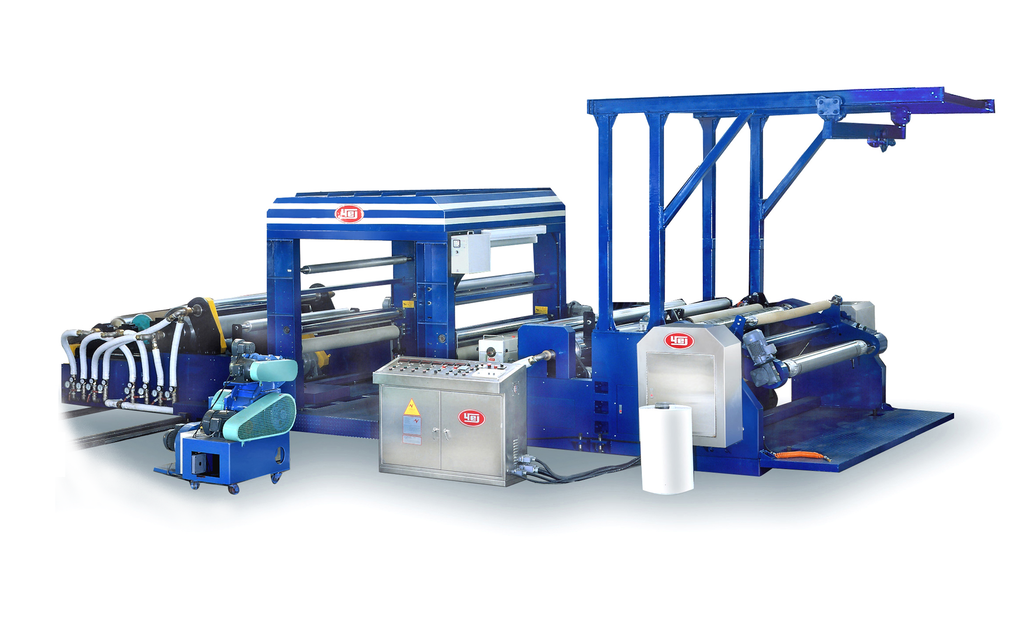

Casting PE/PP Embossed Film Making Machine

CPE SERIES
Casting PE/PP Embossed Film Making Machine
Material : LDPE/PP
Screw Dia.: 100MM / 120MM
Thickness: 0.03~0.25MM
Extrusion Output : 120 ~ 240 kg/hr

Play Video

Application

Applicable material / Final product

PE Gloves and more

LDPE / LLDPE (Casting line)

Model

A quick check to help you finding the suitable machine

Product

SPEC.


CPE100

SCREW DIA. : 100 MM
EXTRUSION OUTPUT : 120~180 KG/HR

–

CPE120

SCREW DIA. : 120 MM
EXTRUSION OUTPUT : 180~240 KG/HR

–

Format

MODEL

CPE SERIES

APPLICABLE MATERIAL

LDPE / PP

FINAL PRODUCT

EMBOSSED FILM / FILM ROLLS

LAYFLAT WIDTH

1,200~2,000 M/M

THICKNESS RANGE

0.03~0.25MM

( Depending on material properties )

OUTPUT RANGE (KG / HR)

120 ~240 kg/hr

( Depending on size of die, film width, film thickness, working condition and material properties.)

COMPOSITION (STANDARD)

AIR COOLED EXTRUDER, SCREEN CHANGER,T-DIE,FORMING ROLLS STACK,TENSION WINDER, EDGE TRIM RECOVERY, WATER CHILLER, CONTROL PANEL

SCREW DIA.

Ø 100MM / Ø 120MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

30/1

( Customized )

OPTIONS

AUTO LOADER, AIR COMPRESSOR, CORONA TREATOR, PRESSURE GAUGE, GRAVIMETRIC BLENDER, HOPPER DRYER, ETC.

Introduction

Product Features of CPE Series

【APPLICABLE MATERIALS】:
LDPE/PP

【APPLICATION of embossed films】:
Disposable gloves (for food packaging, household use, sanitary use), plastic tablecloth, plastic apron, shower cap, raincoats, rain shoes protector, medical protective clothing, etc.

YE I's mono-layer casting film machine is designed to produce films for multiple purposes. It has high mechanical and assembly precision to ensure stability. With high performance of each component, it can manufacture thin and thick films suitable for various film types applications.

YE I's Casting embossed film making machine

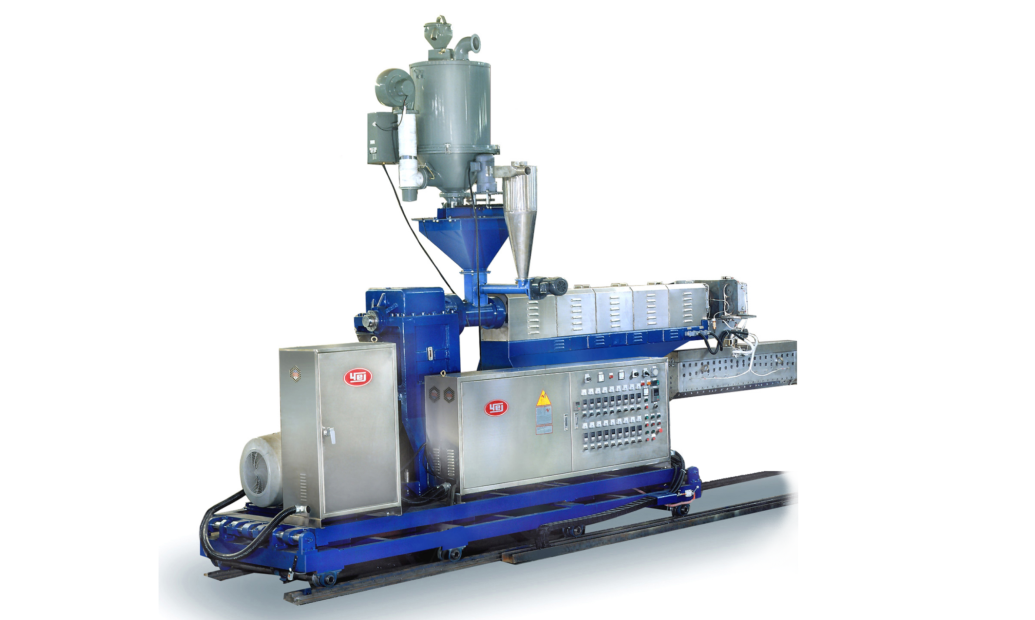

• Air Cooled extruder :
(Operation methods : Downwards)
High base type extruder and the gear box housing are made of cast iron which are strong and durable. The gear is made of special alloy steel, after heat treatment and precision grinding, making the operation more flexible and energy-saving.

• T-Die :
Made of high quality alloy steel, with highly polished and chrome plated treatments. Flat type is the most commonly used design for extruded cast film. The internal flow channel has a pressure-reducing design to make the flow even and stable. The thickness can be controlled by adjusting the die-lip. The width of die-head can also be adjusted in design according to the width of the final film products.

• Screen changer :
The sliding screen changer with easy-moving plate, which simplifies the screen changing process and no oil leakage. It is composed of oil pump, solenoid valve and melt pressure sensor.

1) Assembly and inspection-Gear box

2) Assembly and inspection-Barrel with heaters

3) Raw material for screw and barrel

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.

Die head, cylinder and extruder are the key components of film making extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error. About 200 sets of extrusion equipment are sold every year.

Advantage

High quality
Easy operation
Low power consumption
Low CO2 emissions
