MONO LAYER - PE Blown Film Machine

HDAS SERIES

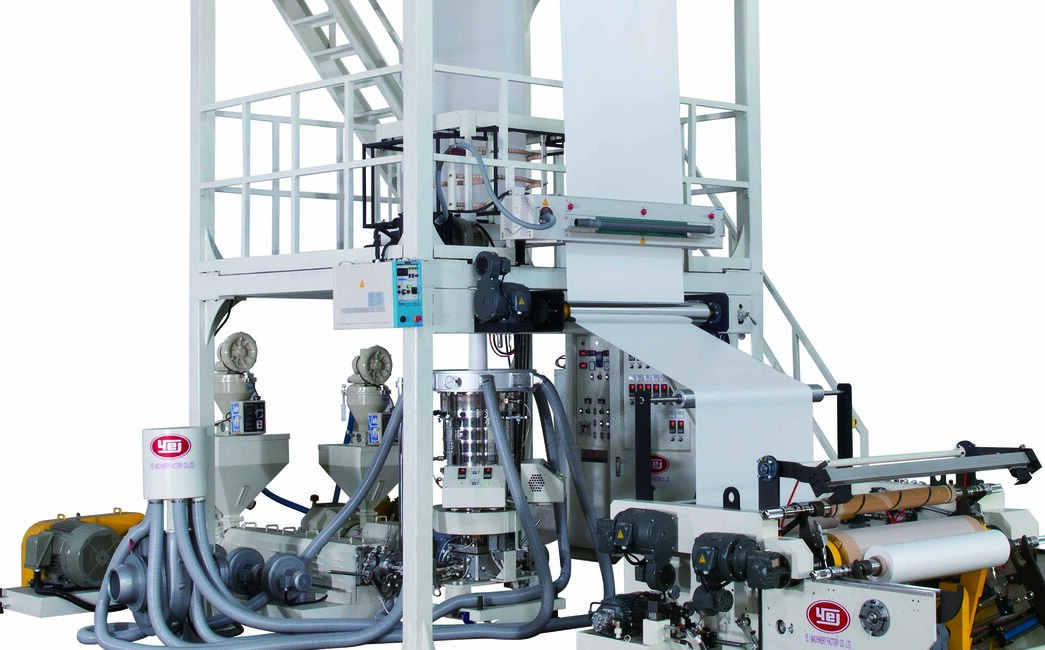

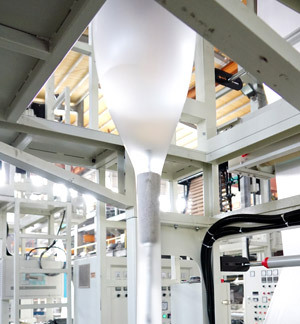

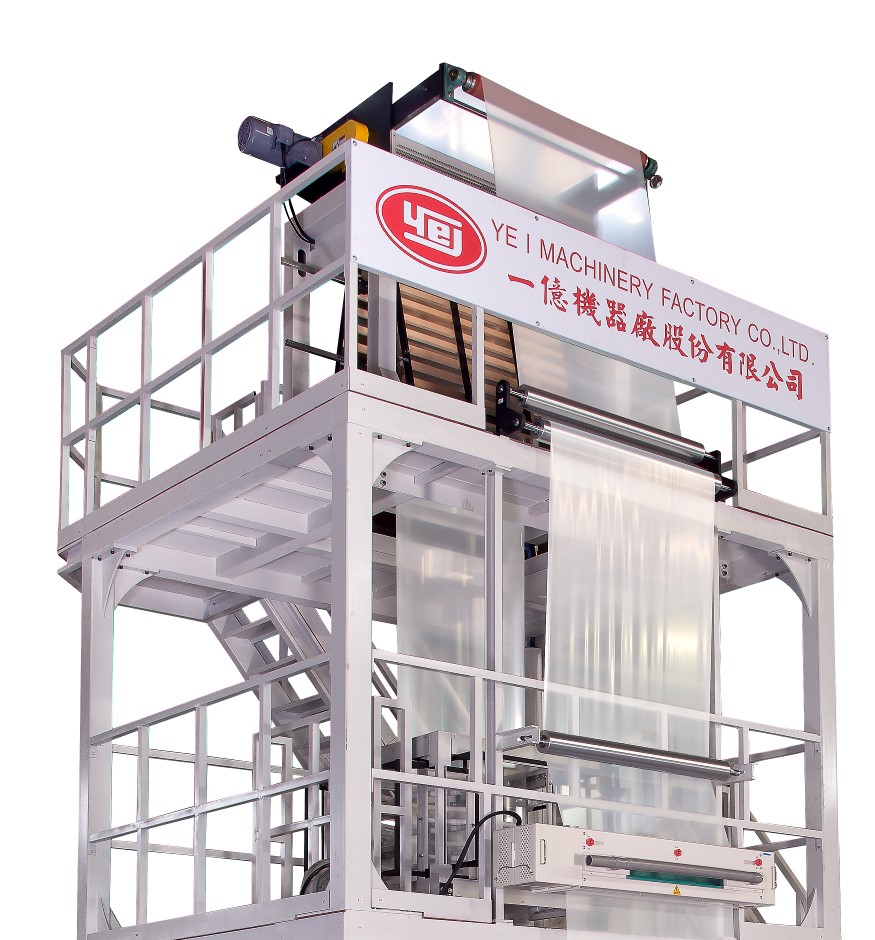

Mono Layer - High Speed Blown Film Machine
Material : HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL
Screw Dia.: 45MM / 55MM / 65MM / 70MM / 80MM / 100MM / 120MM
Thickness: 0.01~0.2MM
Extrusion Output : 50 ~ 300 kg/hr

Play Video

Application

Applicable material / Final product

Plastic Bags and Films

HDPE / LDPE / LLDPE

Model

A quick check to help you finding the suitable machine

Product

SPEC.


HDAS-45

SCREW DIA. : 45 MM
EXTRUSION OUTPUT : 50 KG/HR

–

HDAS-55

SCREW DIA. : 55 MM
EXTRUSION OUTPUT : 80 KG/HR

–

HDAS-65

SCREW DIA. : 65 MM
EXTRUSION OUTPUT : 120 KG/HR

–

HDAS-70

SCREW DIA. : 70 MM
EXTRUSION OUTPUT : 140 KG/HR

–

HDAS-80

SCREW DIA. : 80 MM
EXTRUSION OUTPUT : 160 KG/HR

–

HDAS-100

SCREW DIA. : 100 MM
EXTRUSION OUTPUT : 250 KG/HR

–

HDAS-120

SCREW DIA. : 120 MM
EXTRUSION OUTPUT : 300 KG/HR

–

Format

MODEL

HDAS SERIES

APPLICABLE MATERIAL

HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL

FINAL PRODUCT

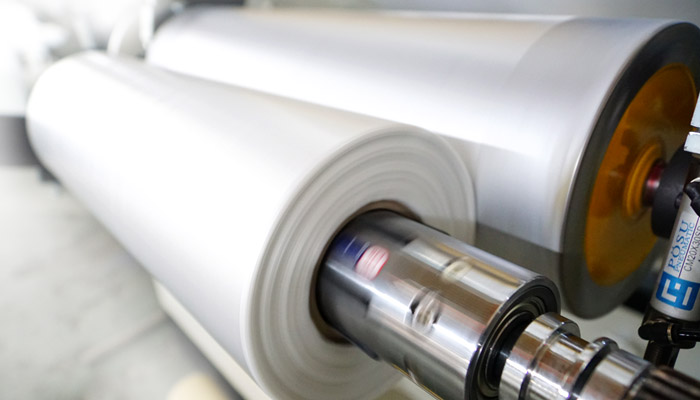

MONO LAYER FILM/ FILM ROLLS

LAYFLAT WIDTH

400~3,000 M/M

THICKNESS RANGE

0.01~0.2MM

( Depending on material properties )

OUTPUT RANGE (KG / HR)

50 ~300 kg/hr

( Depending on size of die, film width, film thickness, working condition and material properties.)

COMPOSITION (STANDARD)

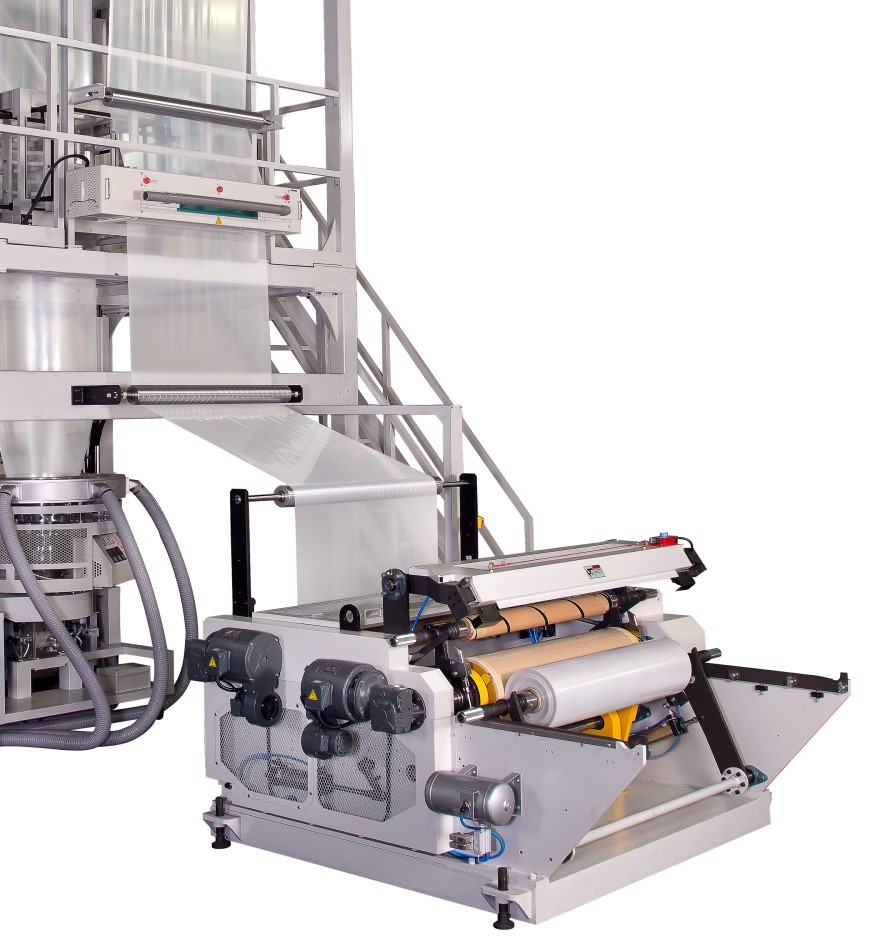

EXTRUDER, DRIVING MOTOR, DIE-HEAD, AIR-RING, FILTER, TAKE-UP UNIT, CONTROL PANEL, WINDER

SCREW DIA.

Ø 45MM / Ø 55MM / Ø 65MM / Ø 70MM / Ø 80MM / Ø 100MM / Ø 120MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

28/1 , 30/1 , 32/1

( Customized )

OPTIONS

AUTO LOADER, CORONA TREATOR, ROTARY DIE DEVICE OR OSCILLATING TAKE-UP UNIT, EMBOSSING ROLLER, TENSION CONTROL FOR WINDER, PRESSURE GAUGE, GRAVIMETRIC BLENDER, INTERNAL BUBBLE COOLING DEVICE, AUTO GAUGING CONTROL SYSTEM, BACK TO BACK WINDER, HOPPER DRYER, ETC.

Introduction

Product Features of HDAS Series

【APPLICABLE MATERIALS】:
HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL

【APPLICATION of mono layer films】:
Shopping bag, garbage bag, heavy-duty bag, shrink film, stretch wrap and so on.

The design of this High Speed Blown Film Line is backed up by many years of experience, research and development.
• Compact design, space-saving.
• Due to the different properties, we offer specific sets of die and air-ring. The blown film line is capable of running HDPE and LDPE by changing the insert.

Main components of YE I's High Speed Blown Film machine

• Extruder :
With iron casting gear box (Three axles transmission type with SKF bearings), made of alloy steel with heat treatment and precise grinding. Solid, flexible, energy-saving, special spiral design to improve production capacity.

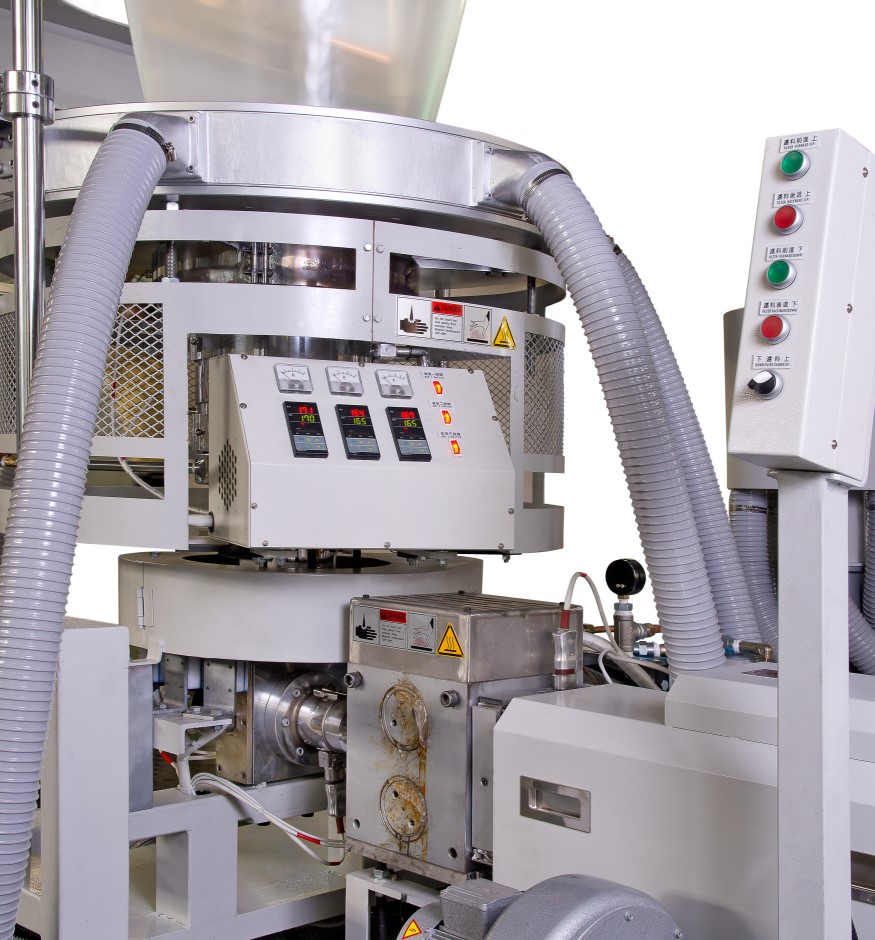

• Die head:
Center-fed spiral type. The specifications of the die-head are adjustable according to the difference in material properties and the thickness of final product.

• Melt Filter :
Filter impurities without leakage. We offer two(2) kinds of manual filters for selection. Hydraulic screen changer is available.

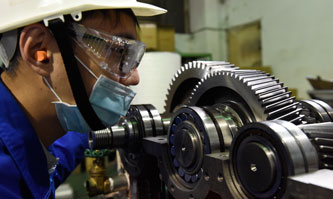

1) Assembly and inspection-Gear box

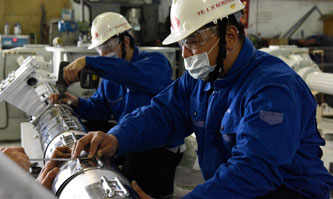

2) Assembly and inspection-Barrel with heaters

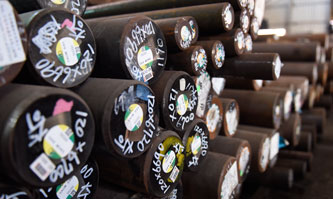

3) Raw material for screw and barrel

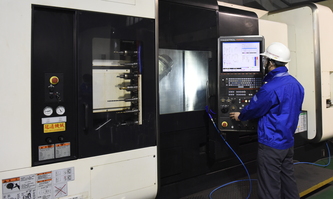

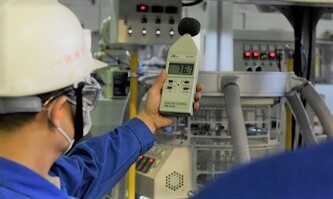

4) Monitor the processes through computer

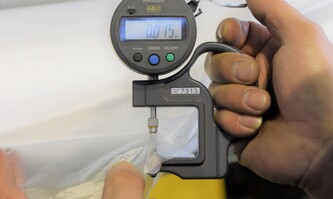

5) Running test and measure the thickness of films

6) Other related checks, if necessary

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.

Air ring, die head, cylinder and extruder are the key components of blown film extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error.

About 200 sets of extrusion equipment are sold every year. YE I has already sold over ten thousand of blown film machines and other related equipment in 90 countries worldwide.

Advantage

High quality
Easy operation
Low power consumption
Low CO2 emissions

Sales success

Our international sales success of plastic blown film lines

YE I's extrusion line has been sold more than 10,000 units worldwide

Engaged in the plastic extrusion industry since 1960, over 10,000 units of YE I's blown film machines and recycling equipment have been sold to 120 countries, mostly in Europe, Asia and North America. Along with blown film extruders, plastic waste recycling equipment also been purchased to handle leftover bags. Thousands of best-selling ABA blown film extrusion lines have been installed for production. If you are looking for a trustworthy and innovative blown film line supplier, look no further than YE I MACHINERY!
