HDM SERIES
Mono Layer - Mini Type Blown Film Machine
Material : HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL
Screw Dia.: 45MM
Thickness: 0.008~0.15MM
Extrusion Output : 36 ~ 50 kg/hr
HDPE / LDPE / LLDPE
No
Product
SPEC.
HDM-45
SCREW DIA. : 45 MM
EXTRUSION OUTPUT : 36-50 KG/HR
MODEL
HDM SERIES
APPLICABLE MATERIAL
HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL
FINAL PRODUCT
MONO LAYER FILM/FILM ROLLS
LAYFLAT WIDTH
450~550 M/M
THICKNESS RANGE
0.008~0.15MM
( Depending on material properties )
EXTRUSION OUTPUT(KG / HR)
36 ~50 kg/hr
( Depending on size of die, film width, film thickness, working condition and material properties.)
COMPOSITION (STANDARD)
EXTRUDER, DRIVING MOTOR, DIE-HEAD, AIR-RING, FILTER, TAKE-UP UNIT, CONTROL PANEL, WINDER
SCREW DIA.
Ø 45MM
SCREW/BARREL'S MATERIAL
ALLOY STEEL SACM-645
L/D RATIO
26/1 , 28/1 , 30/1 , 32/1
( Customized )
OPTIONS
AUTO LOADER, CORONA TREATOR, ROTARY DIE DEVICE, EMBOSSING ROLLER, TENSION CONTROL FOR WINDER, PRESSURE GAUGE, GRAVIMETRIC BLENDER, BACK TO BACK WINDER, HOPPER DRYER, ETC.
【APPLICABLE MATERIALS】:
HDPE/LDPE/LLDPE/BIODEGRADABLE MATERIAL
【APPLICATION of mono layer films】:
Shopping bag, garbage bag, heavy-duty bag, shrink film, stretch wrap and so on.
• Compact design, space-saving.
• Due to the different properties, we offer specific sets of die and air-ring. The blown film line is capable of running HDPE and LDPE by changing the insert.
• Extruder :
With iron casting gear box, made of alloy steel with heat treatment and precise grinding. Solid, flexible, energy-saving, special spiral design to improve production capacity.
• Die head:
The specifications of the die-head are adjustable according to the difference in material properties and the thickness of final product.
• Melt Filter :
Filter impurities without leakage. We offer two(2) kinds of manual filters for selection. Hydraulic screen changer is available.

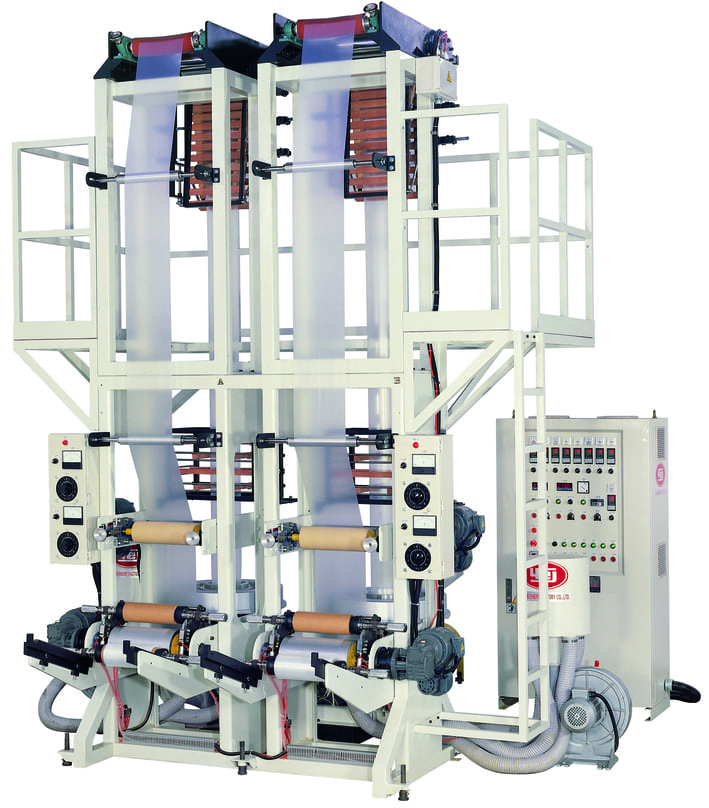

YEI-DH series - Twin head PE blown film line
YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.
Air ring, die head, cylinder and extruder are the key components of blown film extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error.
About 200 sets of extrusion equipment are sold every year. YE I has already sold over ten thousand of blown film machines and other related equipment in 90 countries worldwide.
High quality
Easy operation
Low power consumption
Low CO2 emissions
Engaged in the plastic extrusion industry since 1960, over 10,000 units of YE I's blown film machines and recycling equipment have been sold to 120 countries, mostly in Europe, Asia and North America. Along with blown film extruders, plastic waste recycling equipment also been purchased to handle leftover bags. Thousands of best-selling ABA blown film extrusion lines have been installed for production. If you are looking for a trustworthy and innovative blown film line supplier, look no further than YE I MACHINERY!
