FILM TO FILM - PE Blown Film Machine

HDN SERIES

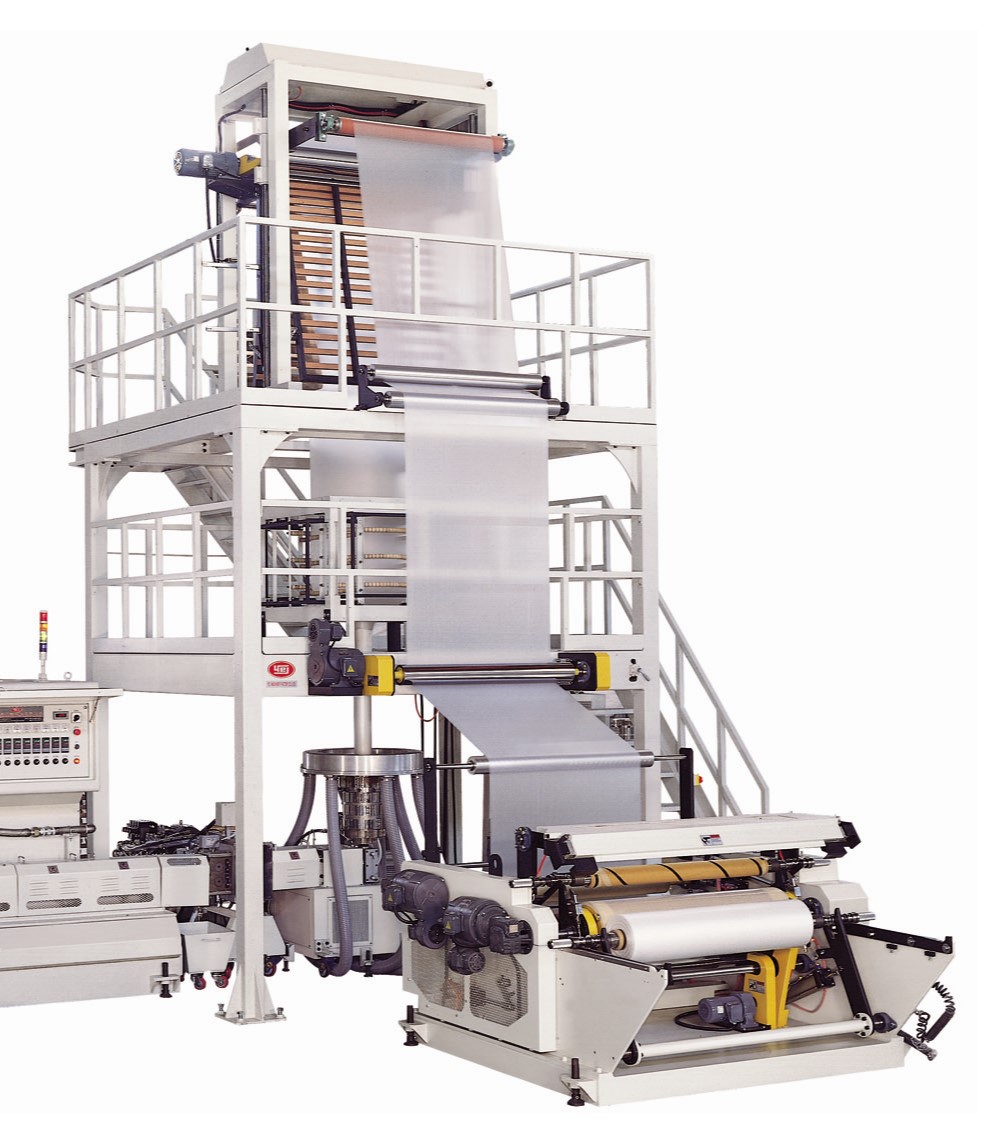

Film to film - PE High Speed Blown Film Machine
(Single die-head or Twin die-head)
Material : HDPE/LDPE/LLDPE
Screw Dia.: 65MM / 85MM
Thickness: 0.01~0.2MM
Extrusion Output : 100 ~ 200 kg/hr

Play Video

Application

Applicable material / Final product

Plastic Bags and Films

HDPE / LDPE / LLDPE

Model

A quick check to help you finding the suitable machine

Product

SPEC.


HDN-65

SCREW DIA. : 65 MM
EXTRUSION OUTPUT : 100~120 KG/HR

–

HDN-85

SCREW DIA. : 85 MM
EXTRUSION OUTPUT : 180~200 KG/HR

–

Format

MODEL

HDN SERIES

APPLICABLE MATERIAL

HDPE/LDPE/LLDPE
( Films or Film rolls )

FINAL PRODUCT

MONO LAYER FILM/ FILM ROLLS

LAYFLAT WIDTH

1,100~1,500 M/M

THICKNESS RANGE

0.01~0.2MM

( Depending on material properties )

OUTPUT RANGE (KG / HR)

100 ~200 kg/hr

( Depending on size of die, film width, film thickness, working condition and material properties.)

COMPOSITION (STANDARD)

FEEDING CONVEYOR, CUTTER COMPACTOR (SHREDDER), EXTRUDER, SCREEN CHANGER, DRIVING MOTOR, DIE-HEAD, AIR-RING, TAKE-UP UNIT, CONTROL PANEL, WINDER

SCREW DIA.

Ø 65MM / Ø 85MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

30/1 , 32/1

( Customized )

OPTIONS

AUTO LOADER, CORONA TREATOR, ROTARY DIE DEVICE, EMBOSSING ROLLER, TENSION CONTROL FOR WINDER, PRESSURE GAUGE, AUTO GAUGING CONTROL SYSTEM, HOPPER DRYER, MASTERBATCH PELLETS FEEDER, GEAR PUMP, STABILISER, VACUUM PUMP, METAL DETECTOR, CACO3 DOSER FOR EXTRUDER, ETC.

Introduction

Product Features of HDN Series

【APPLICABLE MATERIALS】:
HDPE/LDPE/LLDPE

YE I's film-to film tubular blown film machine compared the traditional process through CRUSHER > PELLETIZER > BLOWN FILM MACHINE, reducing the process time, the power consumption largely and carbon emissions in line with energy-saving concept of environmental protection.

• Compact design, space-saving, energy-saving.
• Direct combination of recycling line and blown film line

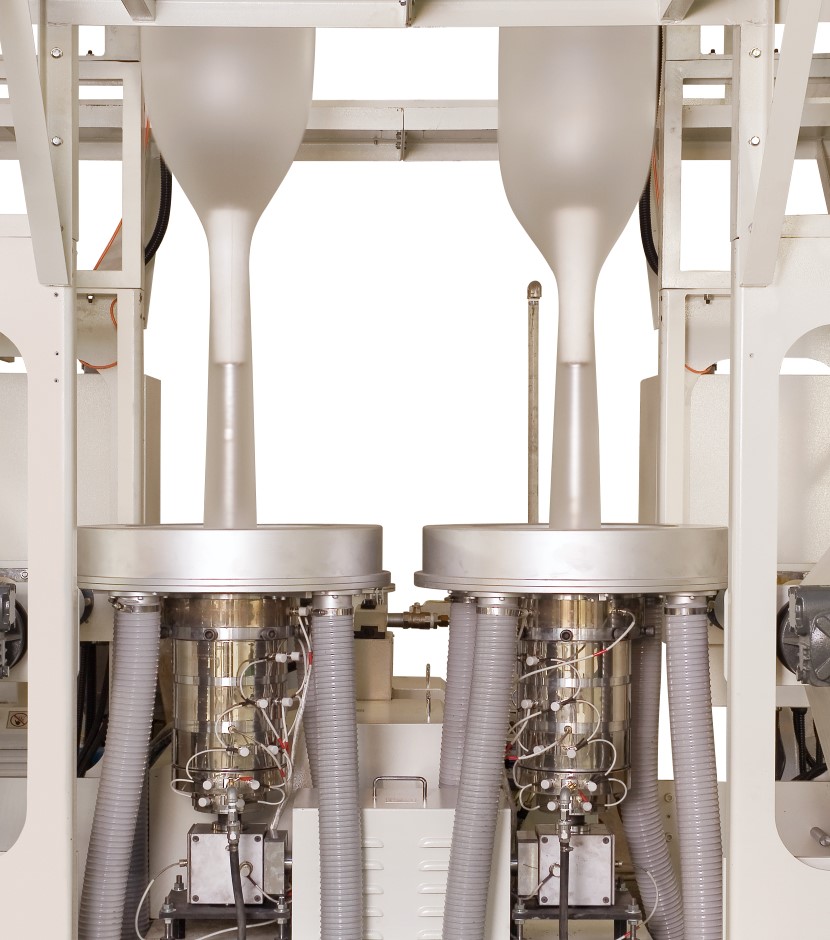

• Twin die-head is available as option
• Twin hydraulic cylinder type screen changer - allows changing screen without machine shut-down.
• The blown film line is capable of running HDPE and LDPE by changing the insert.

Video-HDN series-SINGLE die head

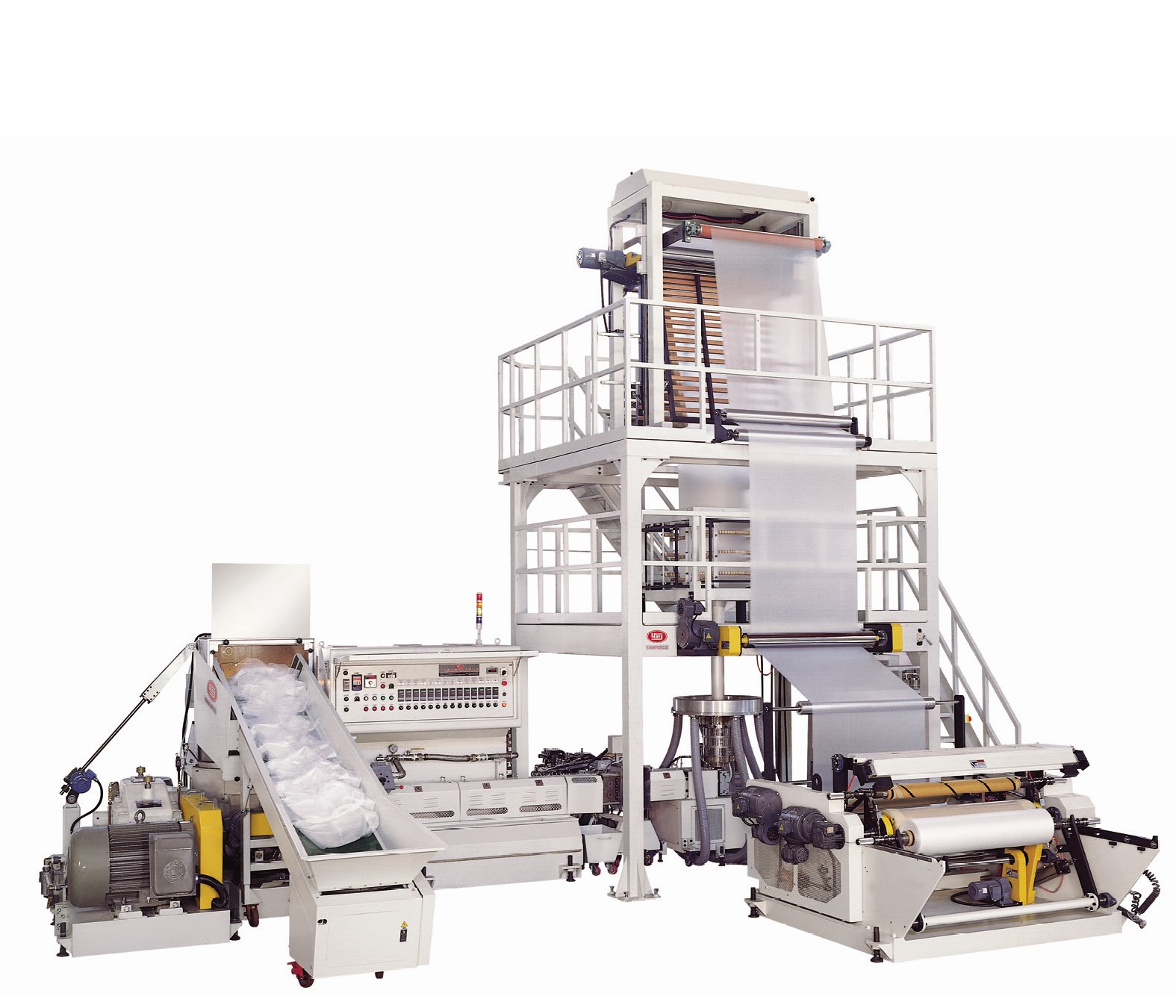

Key points of YE I's innovation Film-to-Film Blown Film Line (combination of plastic recycling and blown film)

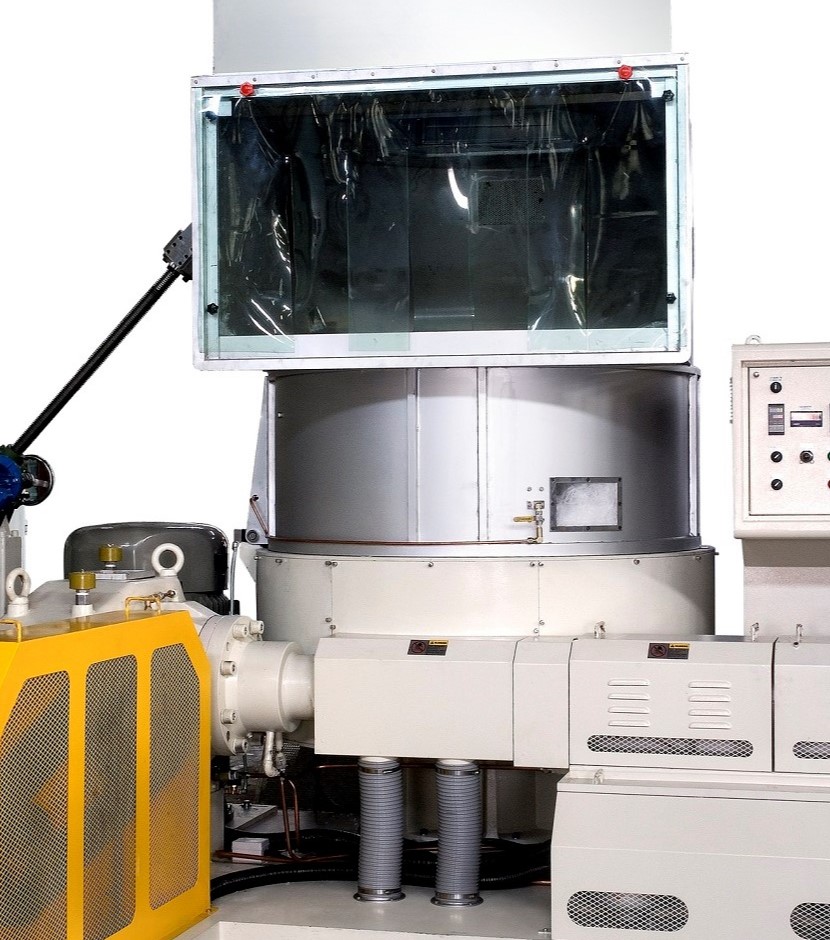

• Shredding drum :
Material will be fed into the shredder by the conveyor or nip-roller and be shredded by high-speed rotating blades.

• Extruder :
With iron casting gear box (Three axles transmission type with SKF bearings), made of alloy steel with heat treatment and precise grinding. Solid, flexible, energy-saving, special spiral design to improve production capacity. During this process, the material gradually melts and is thoroughly mixed and compacted.

• Die head:
Center-fed spiral type. The specifications of the die-head are adjustable according to the difference in material properties and the thickness of final product.

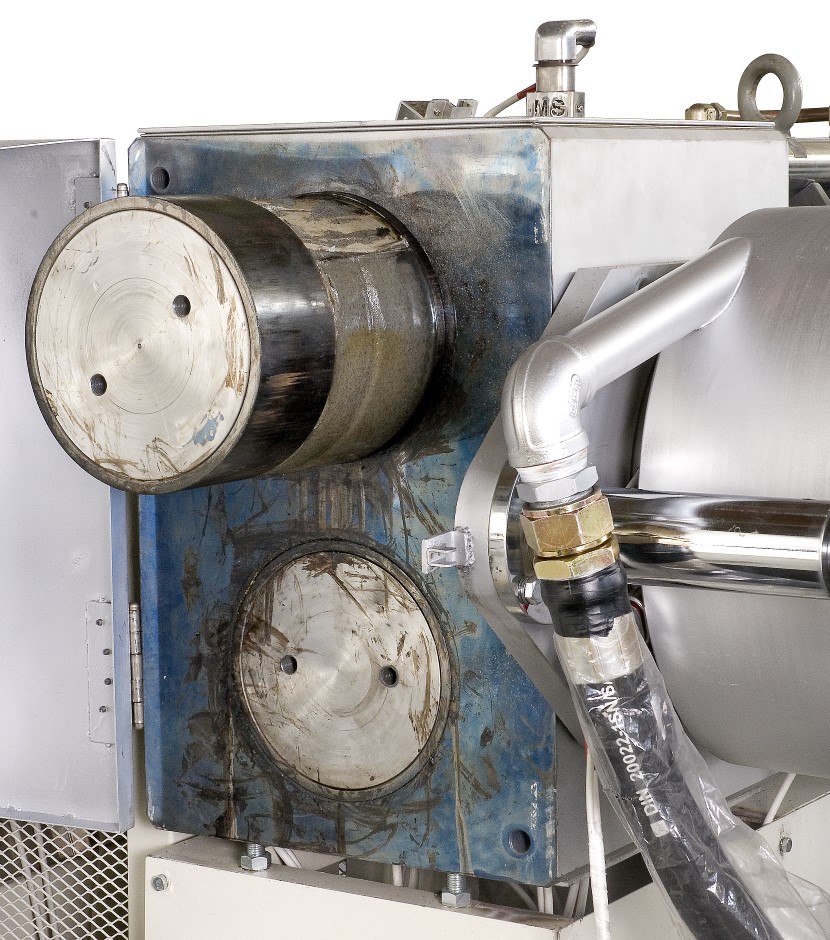

• SCREEN CHANGER:
Filter excess impurities and support the function of changing meshes without stopping the machine.

1) Assembly and inspection-Gear box

2) Assembly and inspection-Barrel with heaters

3) Raw material for screw and barrel

4) Monitor the processes through computer

5) Running test and measure the thickness of films

6) Other related checks, if necessary

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.

Air ring, die head, cylinder and extruder are the key components of blown film extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error.

About 200 sets of extrusion equipment are sold every year. YE I has already sold over ten thousand of blown film machines and other related equipment in 90 countries worldwide.

Advantage

High quality
Easy operation
Low power consumption
Low CO2 emissions

Sales success

Our international sales success of plastic blown film lines

YE I's extrusion line has been sold more than 10,000 units worldwide

Engaged in the plastic extrusion industry since 1960, over 10,000 units of YE I's blown film machines and recycling equipment have been sold to 120 countries, mostly in Europe, Asia and North America. Along with blown film extruders, plastic waste recycling equipment also been purchased to handle leftover bags. Thousands of best-selling ABA blown film extrusion lines have been installed for production. If you are looking for a trustworthy and innovative blown film line supplier, look no further than YE I MACHINERY!

Click "Read more" for more product information Read More
