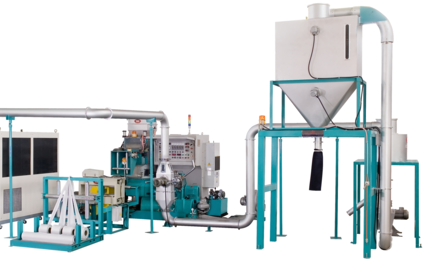

Air Cooled Plastic Recycling Machine

YDN-A SERIES
Cooling Type : Air Cooled
Material : PE BREATHABLE FILM
Screw Dia.: 65MM / 85MM
Output : 90 ~ 180 kg/hr

Application

Applicable material / Final product

PE BREATHABLE FILM

POLYETHYLENE BREATHABLE FILM

Model

A quick check to help you finding the suitable machine

No

Product

SPEC.


YDN-65-A-1

OUTPUT : 90-100 KG/HR
SCREW DIA. : 65MM

–

YDN-85-A-1

OUTPUT : 150-180 KG/HR
SCREW DIA. : 85MM

–

Format

MODEL

YDN-A SERIES

APPLICABLE MATERIAL

PE BREATHABLE FILM

OUTPUT RANGE (KG / HR)

90~180 kg/hr

( Depending on moisture content and percentage of contamination. )

COMPOSITION (STANDARD)

FEEDING CONVEYOR, CUTTER COMPACTOR (SHREDDER),EXTRUDER, SCREEN CHANGER, DIE-FACE PELLETIZER, BLOWER, CYCLONE, PELLETS COLLECTION SILO, CONTROL PANEL

SCREW DIA.

Ø 65MM / Ø 85MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

30/1 , 32/1

( Customized )

OPTIONS

NIP-ROLLER ( FOR FEEDING ), METAL DETECTOR, VACUUM PUMP, COOLING VIBRATING SIEVE, CHILLER, MASTERBATCH FEEDER

Introduction

Product Features of YDN-A Series

【APPLICABLE MATERIAL AND TYPE】:
PE Breathable Film

• Direct combination of shredder, extruder and pelletizer.
• Die-face pelletizer.
• Air cooler is available as option.
• Twin hydraulic cylinder type screen changer - allows changing screen without machine shut-down.
• Compact design, space-saving.
• High quality, moisture-free final products.

How the YE I’s plastic waste recycling machine works, the process contains as below

1. FEED THE MATERIAL:
- CONVEYOR (belt type): Feed the material into the entrance of shredding drum. (It can be switched to manual or automatic mode according to actual needs.)
- NIP ROLLER (Optional): Used for the feeding of roll film material.
2. METAL DETECTOR (Optional):
If metal is detected during the feeding process, the safety mechanism will be activated, a warning sound will be issued and the conveyor will automatically stop.

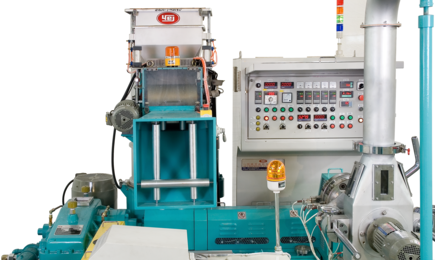

3. SHREDDING DRUM:
Shred the materials with rotary blades and stationary blades.
4. EXTRUDER:
During this process, the material gradually melts and is thoroughly mixed and compacted.
5. CONTROL PANEL
6. VENT PORT (single vented type):
Remove water and ink generated during melting. Extra vent port is available as an option.
7. HYDRAULIC SCREEN CHANGER:
Filter excess impurities and support the function of changing meshes without stopping the machine.

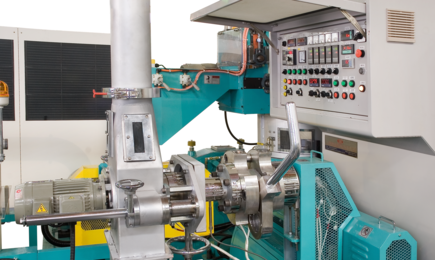

8. DIE-FACE PELLETIZER:
Granulation, the size of plastic particles can be adjusted during this process.
9. BLOWER AND CYCLONE:
Air cools and transfers particles to the cyclone separator.
10. PELLETS COLLECTION SILO:
Collect the pellets for subsequent bagging.

1) Assembly and inspection-Gear box

2) Assembly and inspection-Barrel with heaters

3) Raw material for screw and barrel

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house, such as screw, barrel, die head, filter, etc., to ensure the overall quality and stable operation of the company's machines.

About 200 sets of extrusion equipment are sold every year. YE I's professional high-quality recycling machines have been installed in 120 countries worldwide.

Advantage

Diapers are recyclable
Plastic Waste Recycling
High quality
Easy operation
Low power consumption
Low CO2 emissions
