PP Blown Film Machine

HFPP SERIES
PP Blown Film Machine
Material : PP
Screw Dia.: 45MM / 55MM / 65MM / 80MM
Thickness: 0.02~0.06MM
Extrusion Output : 20 ~ 100 kg/hr

Play Video

Application

Applicable material / Final product

PP Bags and Films

POLYPROPYLENE (PP)

Model

A quick check to help you finding the suitable machine

Product

SPEC.


HFPP-45

SCREW DIA. : 45 MM
EXTRUSION OUTPUT : 15~30 KG/HR

–

HFPP-55

SCREW DIA. : 55 MM
EXTRUSION OUTPUT : 20~55 KG/HR

–

HFPP-65

SCREW DIA. : 65 MM
EXTRUSION OUTPUT : 30~70 KG/HR

–

HFPP-80

SCREW DIA. : 80 MM
EXTRUSION OUTPUT : 50~100 KG/HR

–

Format

MODEL

HFPP SERIES

APPLICABLE MATERIAL

FINAL PRODUCT

MONO LAYER to FIVE LAYER FILM / FILM ROLLS

LAYFLAT WIDTH

100~1,000 M/M

THICKNESS RANGE

0.02~0.06MM

( Depending on material properties )

OUTPUT RANGE (KG / HR)

20 ~100 kg/hr

( Depending on size of die, film width, film thickness, working condition and material properties.)

COMPOSITION (STANDARD)

EXTRUDER, DRIVING MOTOR, CO-EXTRUSION DIE-HEAD, AIR-RING, FILTER, TAKE-UP UNIT, CONTROL PANEL, WINDER

SCREW DIA.

Ø 45MM / Ø 55MM / Ø 65MM / Ø 80MM

SCREW/BARREL'S MATERIAL

ALLOY STEEL SACM-645

L/D RATIO

28/1 , 30/1

( Customized )

OPTIONS

AUTO LOADER, CORONA TREATOR, ROTARY DIE DEVICE OR OSCILLATING TAKE-UP UNIT, EMBOSSING ROLLER, TENSION CONTROL FOR WINDER, PRESSURE GAUGE, GRAVIMETRIC BLENDER, BACK TO BACK WINDER, HOPPER DRYER, ETC.

Introduction

Product Features of HFPP Series

【APPLICABLE MATERIALS】:
PP

【APPLICATION of PP films】:
Films, Film Rolls, Multilayer Film, Food Packaging Bags, etc.

• Compact design, space-saving.
• Variable diameters are available to expand production.
• Easy to operate and maintain, prolong the service life.
• Great mechanical safety.

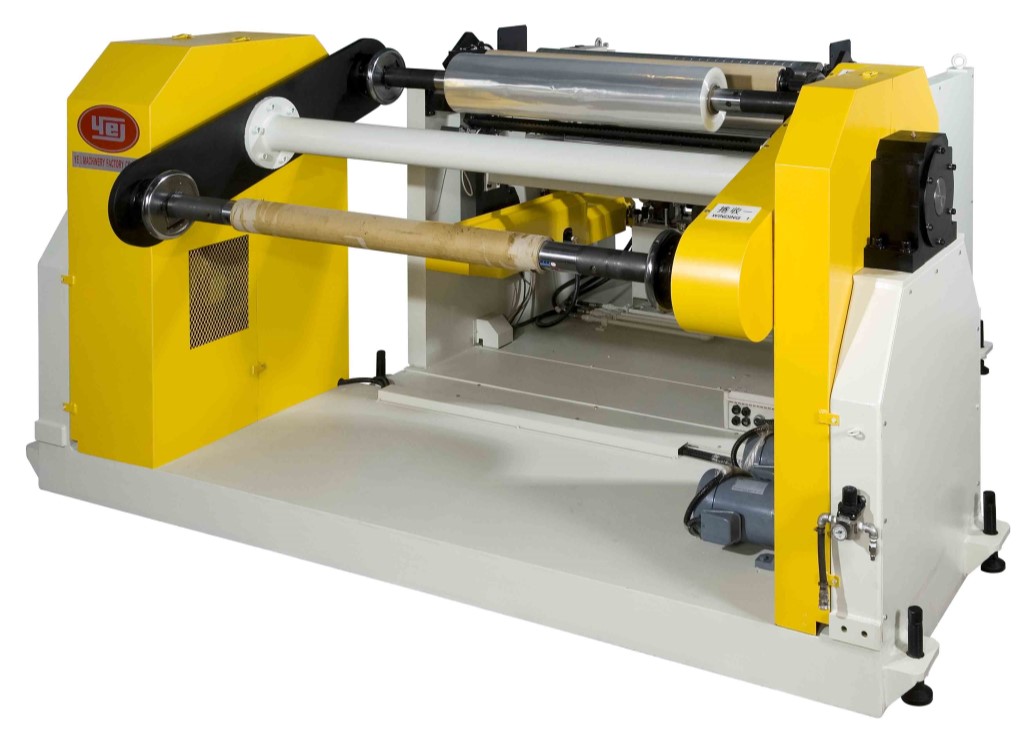

Auto turret tension winder (1)

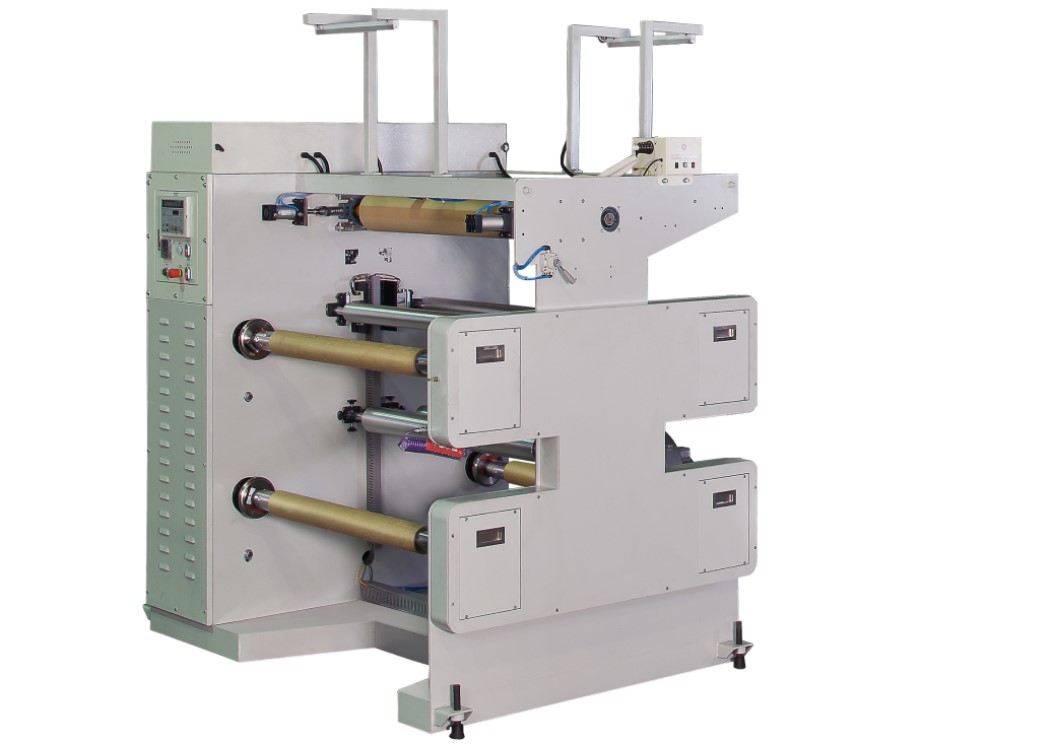

Auto turret tension winder (2)

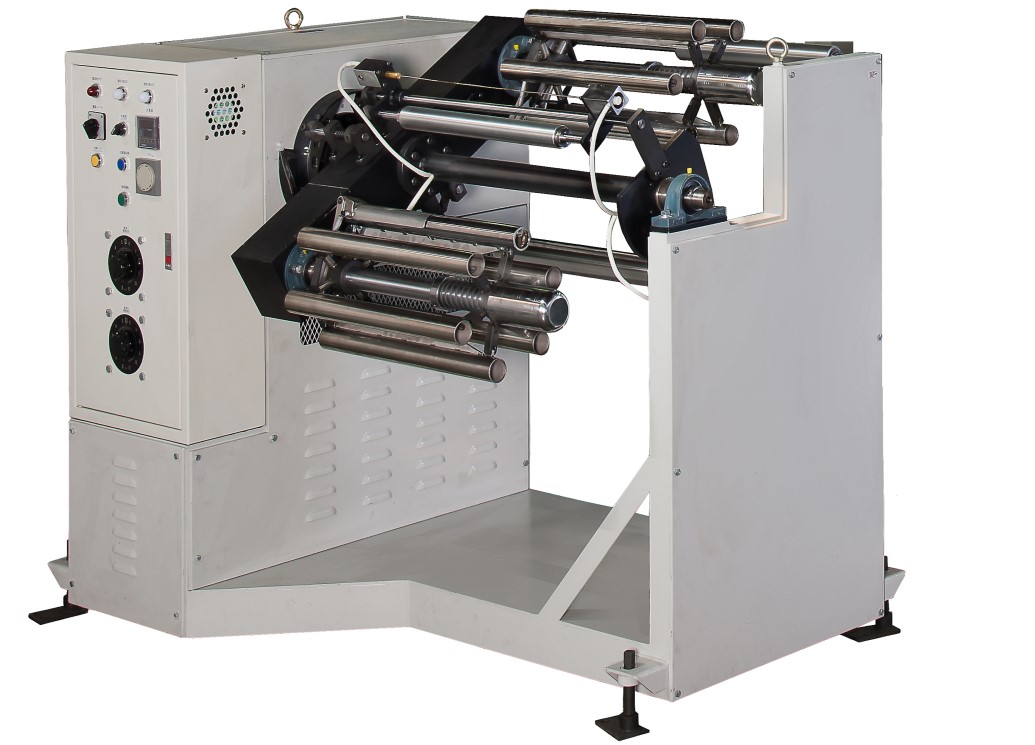

4 Bobbin winder

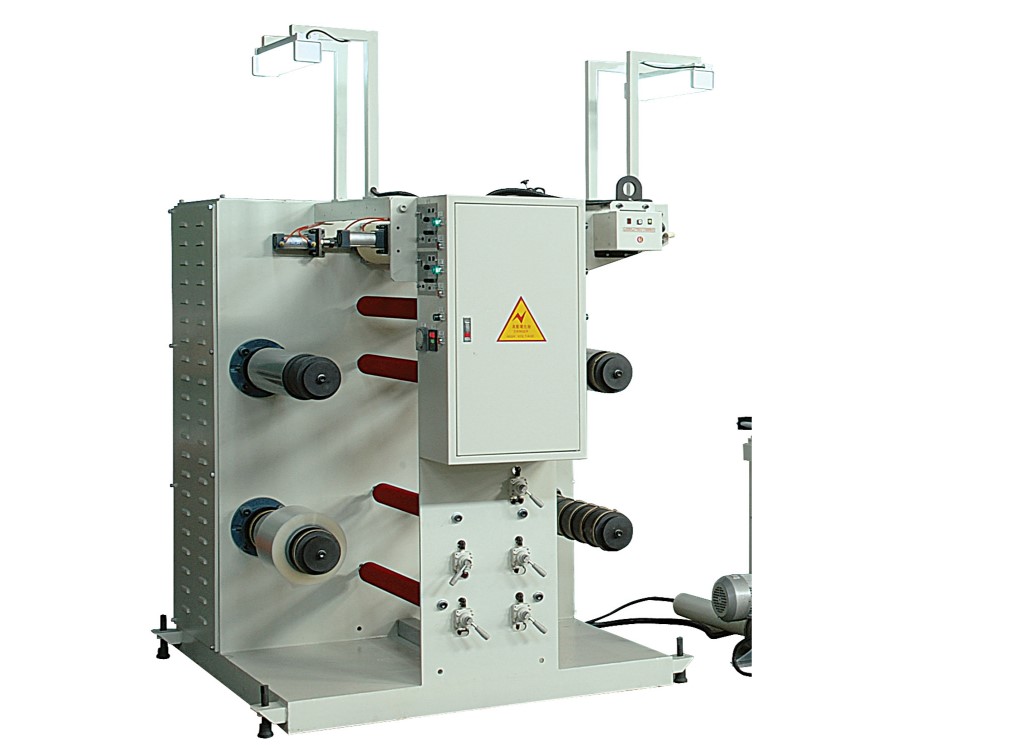

6 angle bobbin winder

Main components of YE I's PP blown film Lines

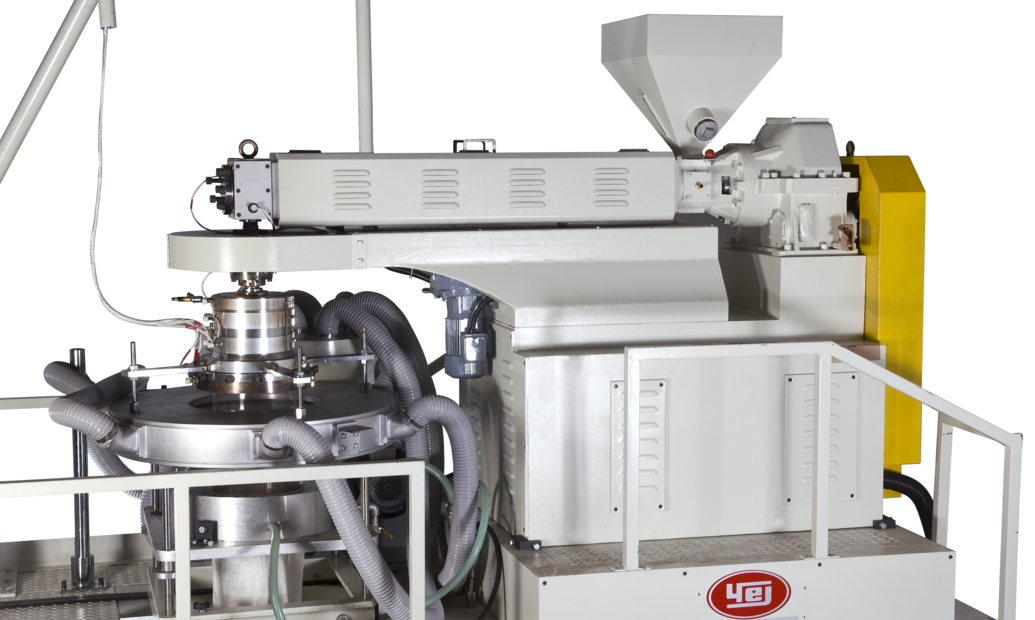

• Extruder :
It is designed with a special mixing section to make the polymer melt uniform and high output.

• Die-head :
Spiral flow channel die is designed to stabilize melt flow. Optional 360-degree rotating device to avoid unevenness of the plastic film during the winding process.

• Cooling unit :
Compared with traditional air cooling, the combination of air cooling and water cooling presents excellent film transparency and gloss.

• Electrical drying unit :
Optimal thermal heating ensures 100% dehydration and further stabilizes the film.

• Control panel :
Operation-friendly and space-saving structure. Equipped with high-quality electrical instrumentation and mushroom emergency stop switch.

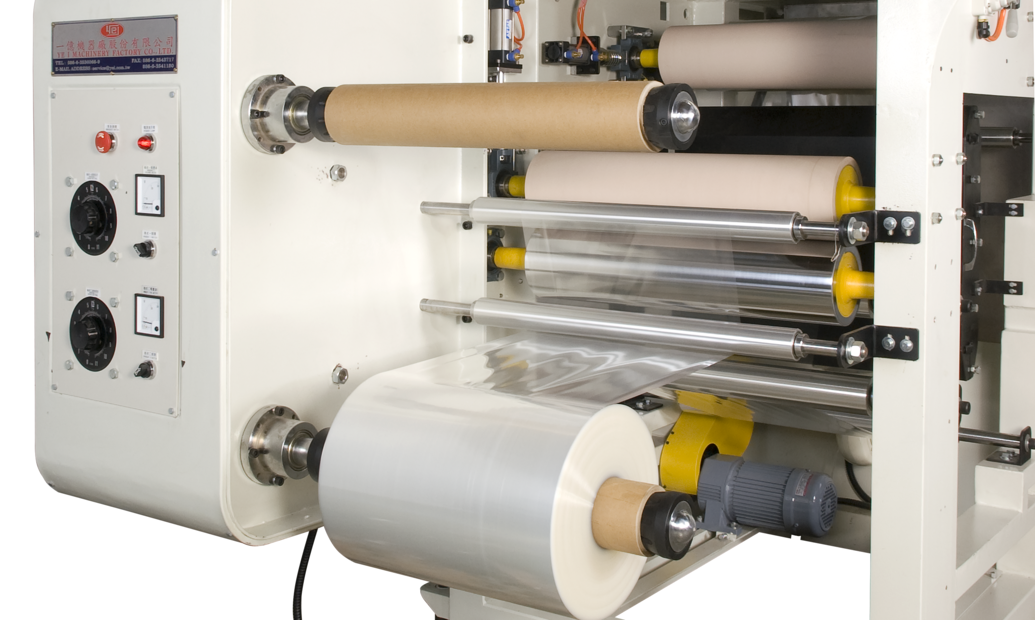

• Winding unit :
YE I offers a variety of winders, including: Manual 2-bobbin type center winder, Manual 4-bobbin type center winder, auto turret tension winder, 6 angle bobbin winder and back to back winder, etc.

1) Assembly and inspection-Gear box

2) Assembly and inspection-Barrel with heaters

3) Raw material for screw and barrel

4) Monitor the processes through computer

5) Running test and measure the thickness of films

6) Other related checks, if necessary

In-house manufacturing of key components - Quality Control

YE I has been engaged in the extrusion industry for more than 60 years. Combining our own design capabilities and production experience, we have purchased deep hole drilling machines and five-axis processing machines from Switzerland, Japan and Germany to be able to manufacture mechanical parts and key components in-house to ensure the overall quality and stable operation of the company's machines.

Air ring, die head, cylinder and extruder are the key components of blown film extrusion. With professional processing equipment, all processes are monitored by computer to ensure that every part of the blown film line is correctly manufactured without any possible human error.

About 200 sets of extrusion equipment are sold every year. YE I has already sold over ten thousand of blown film machines and other related equipment in 90 countries worldwide.

Advantage

High quality
Easy operation
Low power consumption
Low CO2 emissions

Sales success

Our international sales success of plastic blown film lines

YE I's extrusion line has been sold more than 10,000 units worldwide

Engaged in the plastic extrusion industry since 1960, over 10,000 units of YE I's blown film machines and recycling equipment have been sold to 120 countries, mostly in Europe, Asia and North America. Along with blown film extruders, plastic waste recycling equipment also been purchased to handle leftover bags. Thousands of best-selling ABA blown film extrusion lines have been installed for production. If you are looking for a trustworthy and innovative blown film line supplier, look no further than YE I MACHINERY!
